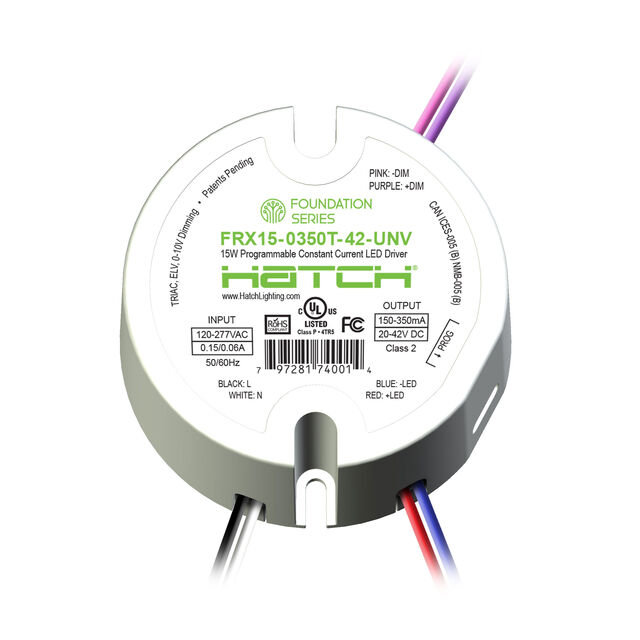

FRX15-0350TO10-420420-UNV
ActiveHatch Lighting
LED DRIVER 15W 350MA 120-277VAC
Deep-Dive with AI
Search across all available documentation for this part.
FRX15-0350TO10-420420-UNV
ActiveHatch Lighting
LED DRIVER 15W 350MA 120-277VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FRX15-0350TO10-420420-UNV |
|---|---|
| Approval Agency | cULus |
| Current - Output (Max) [Max] | 350 mA |
| Dimming | TRIAC, Analog, ELV |
| Efficiency | 84 % |
| Features | OTP, SCP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 15 W |
| Size / Dimension [diameter] | 2.58 in |
| Size / Dimension [diameter] | 65.5 mm |
| Size / Dimension [z] | 1.18 in |
| Size / Dimension [z] | 30.1 mm |
| Standard Number | UL 8750 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 90 VAC |
| Voltage - Input (Min) [Min] | 305 VAC |
| Voltage - Output [Max] | 42 V |
| Voltage - Output [Min] | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.34 | |
| 10 | $ 28.39 | |||
| 50 | $ 26.50 | |||
| 100 | $ 25.72 | |||
Description
General part information
FRX15-0350TO10-420420-UNV
350mA 20 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
