F200-1502
ActiveSSC Controls Company

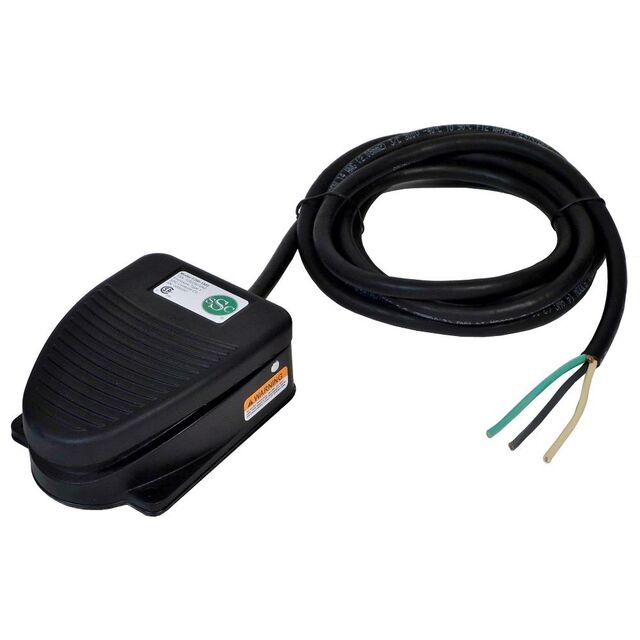

FOOT SWITCH, 15A, CABLE, LEADS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F200-1502
ActiveSSC Controls Company
FOOT SWITCH, 15A, CABLE, LEADS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | F200-1502 |
|---|---|
| Applications | Medium Duty |
| Approval Agency | cULus, CSA |
| Cable Diameter [Max] [diameter] | 16.8 mm |
| Cable Diameter [Max] [diameter] | 0.66 in |
| Cable Diameter [Min] [diameter] | 0.33 in |
| Cable Diameter [Min] [diameter] | 8.4 mm |
| Cable Length | 8 ft |
| Cable Length | 2.44 m |
| Cable Type [custom] | 3 AWG |
| Cable Type [custom] | 14 |
| Current Rating (Amps) | 15 A |
| Features | Switch |
| Type | Switch, SPST |
| Voltage | 250 VAC, 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 52.84 | |
| 10 | $ 46.50 | |||
Description
General part information
F200-1502
Switch, SPST Medium Duty
Documents
Technical documentation and resources
