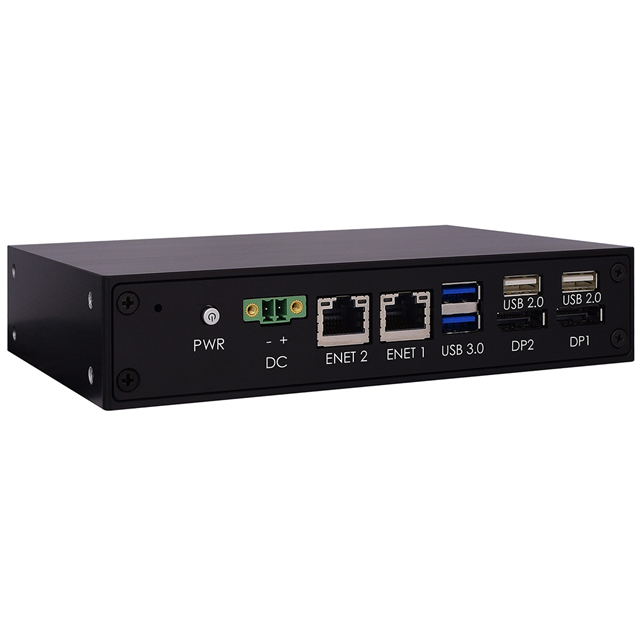

SYS-4274032-4I-1-1
ActiveWINSYSTEMS, INC
SBC 1.8GHZ 4 CORE 4GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SYS-4274032-4I-1-1
ActiveWINSYSTEMS, INC
SBC 1.8GHZ 4 CORE 4GB/0GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SYS-4274032-4I-1-1 |
|---|---|
| Core Processor | Atom X5-E3940 |
| Digital I/O Lines | 8 |
| Ethernet | GbE (2) |
| Expansion Site/Bus | mSATA, M.2, Mini-PCIe |
| Form Factor | M.2 E-Key 2230 |
| Number of Cores | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| RAM Capacity/Installed | 4 GB, 0 GB |
| RS-232 (422, 485) | 3 |
| Size / Dimension [x] | 6.5 in |
| Size / Dimension [x] | 165.1 mm |
| Size / Dimension [y] | 114.3 mm |
| Size / Dimension [y] | 4.5 in |
| Speed | 1.8 GHz |
| Storage Interface | eMMC, SATA, mSATA |
| USB | USB 2.0 (4), USB 3.0 (2) |
| Video Outputs | DisplayPort, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SYS-4274032-4I-1-1
Single Board Computer 1.8GHz 4 Core 4GB/0GB RAM Atom X5-E3940
