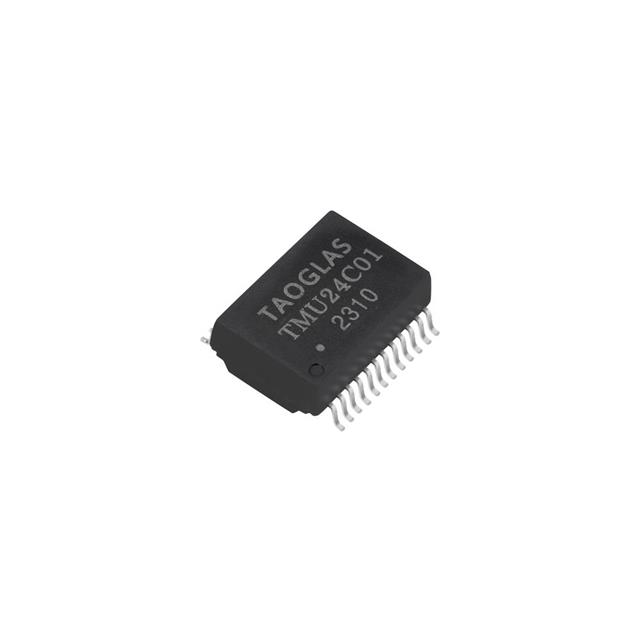

TMU24C01
ActiveTAOGLAS
LAN XFMR 2.5G BASE-T
Deep-Dive with AI
Search across all available documentation for this part.
TMU24C01
ActiveTAOGLAS
LAN XFMR 2.5G BASE-T
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMU24C01 |
|---|---|
| Height - Seated (Max) [Max] | 0.236 in |
| Height - Seated (Max) [Max] | 6 mm |
| Inductance | 180 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 17.6 mm |
| Size / Dimension [x] | 0.693 in |
| Size / Dimension [y] | 0.48 in |
| Size / Dimension [y] | 12.2 mm |
| Transformer Type | LAN 2.5G Base-T |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.79 | |
| 100 | $ 2.65 | |||
| Digi-Reel® | 1 | $ 2.79 | ||
| 100 | $ 2.65 | |||
| Tape & Reel (TR) | 400 | $ 2.65 | ||
| 800 | $ 2.51 | |||
| 1200 | $ 2.39 | |||
Description
General part information
TMU24C01
180µH LAN 2.5G Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Documents
Technical documentation and resources
No documents available
