KSM-2899-REV-
ActiveKSM Electronics Inc.

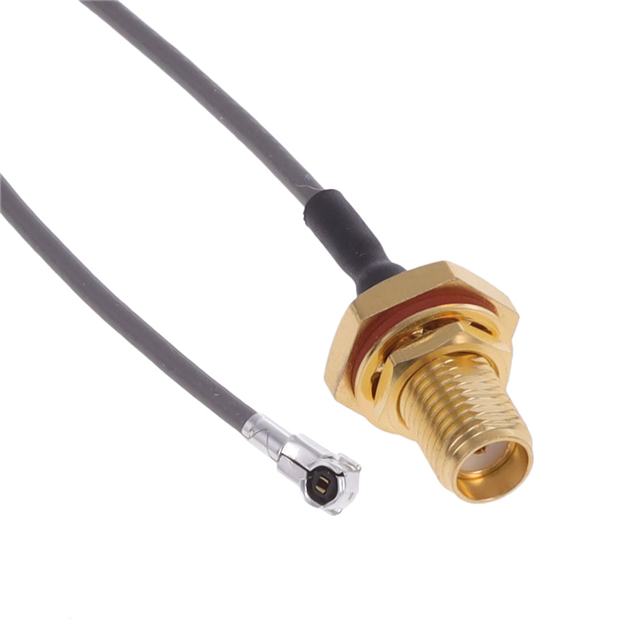

CBL ASSY SMA-H.FL JACK-PLUG 6"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KSM-2899-REV-
ActiveKSM Electronics Inc.
CBL ASSY SMA-H.FL JACK-PLUG 6"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KSM-2899-REV- |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | H.FL Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 1.78mm OD Coaxial Cable |
| Color | Slate |
| Features | Shielded |
| Length | 152.4 mm |
| Length | 6 in |
| Overall Impedance | 50 Ohms |
| Style | SMA to H.FL |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.51 | |
| 10 | $ 43.60 | |||
| 25 | $ 41.92 | |||
| 50 | $ 40.52 | |||
| 100 | $ 38.29 | |||
| 250 | $ 37.17 | |||
Description
General part information
KSM-2899-REV-
Cable Assembly Coaxial SMA to H.FL 1.78mm OD Coaxial Cable 6.000" (152.40mm)
