TSA74-S1S1-S24
ActiveConductRF
CBL ASSY SMA PLUG TO PLUG 24"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSA74-S1S1-S24
ActiveConductRF
CBL ASSY SMA PLUG TO PLUG 24"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSA74-S1S1-S24 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 4.95mm OD Coaxial Cable |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 18 GHz |
| Length | 24 " |
| Length | 609.6 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 127.01 | |
| 5 | $ 112.90 | |||
| 10 | $ 106.95 | |||
| 25 | $ 101.61 | |||
| 50 | $ 96.77 | |||
| 100 | $ 92.37 | |||
| 250 | $ 88.35 | |||
| 500 | $ 84.67 | |||
| 1000 | $ 81.29 | |||
Description
General part information
TSA74-S1S1-S24

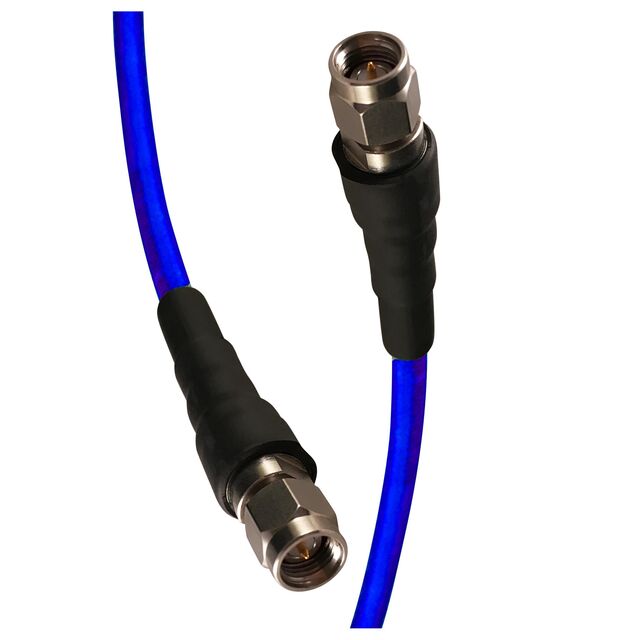

Cable Assembly Coaxial SMA to SMA 4.95mm OD Coaxial Cable 24.00" (609.60mm)
