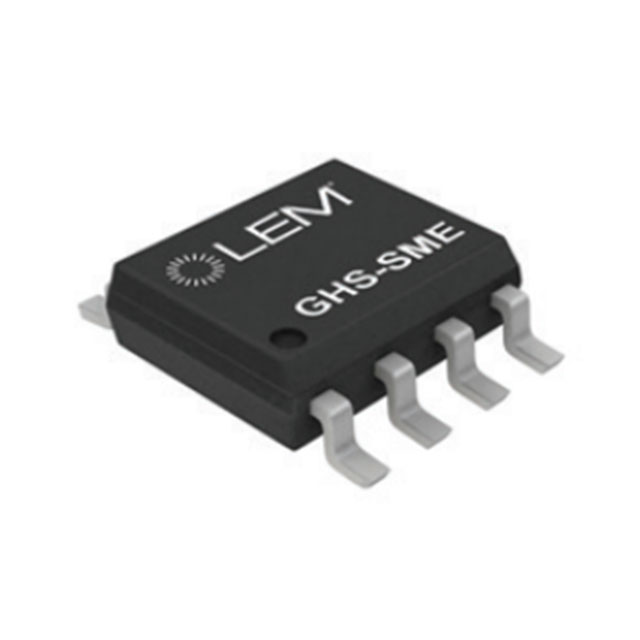

GHS 16-SME
ObsoleteLEM USA Inc.
INTEGRATED PRIMARY 16A O/L
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GHS 16-SME
ObsoleteLEM USA Inc.
INTEGRATED PRIMARY 16A O/L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GHS 16-SME |
|---|---|
| Accuracy | 1.25 % |
| Current - Sensing | 16 A |
| Current - Supply (Max) [Max] | 14 mA |
| For Measuring | AC/DC |
| Frequency [Max] | 100 kHz |
| Frequency [Min] | DC |
| Linearity | 0.25 % |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Polarization | Bidirectional |
| Sensitivity | 50 mV/A |
| Sensor Type | Hall Effect, Open Loop |
| Supplier Device Package | 8-SOIC |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GHS 16-SME
Current Sensor 16A 1 Channel Hall Effect, Open Loop Bidirectional 8-SOIC (0.154", 3.90mm Width)
