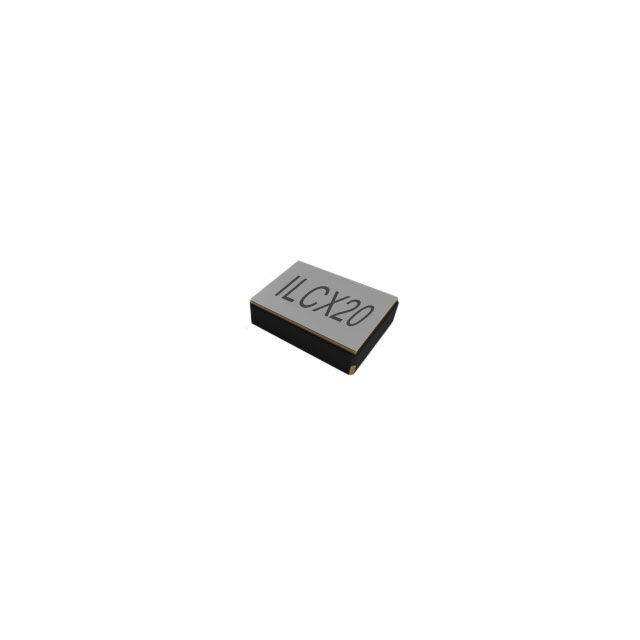

ILCX20-FF5F8-24.000MHZ
ActiveILSI
CRYSTAL 24.0000MHZ 8PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ILCX20-FF5F8-24.000MHZ
ActiveILSI
CRYSTAL 24.0000MHZ 8PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ILCX20-FF5F8-24.000MHZ |
|---|---|
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Frequency | 24 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] | 0.016 in |
| Height - Seated (Max) [Max] | 0.4 mm |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.79 | |
| 10 | $ 0.68 | |||
| 50 | $ 0.61 | |||
| 100 | $ 0.58 | |||
| 500 | $ 0.53 | |||
| Digi-Reel® | 1 | $ 0.79 | ||
| 10 | $ 0.68 | |||
| 50 | $ 0.61 | |||
| 100 | $ 0.58 | |||
| 500 | $ 0.53 | |||
Description
General part information
ILCX20-FF5F8-24.000MHZ
24 MHz ±30ppm Crystal 8pF 150 Ohms 4-SMD, No Lead
