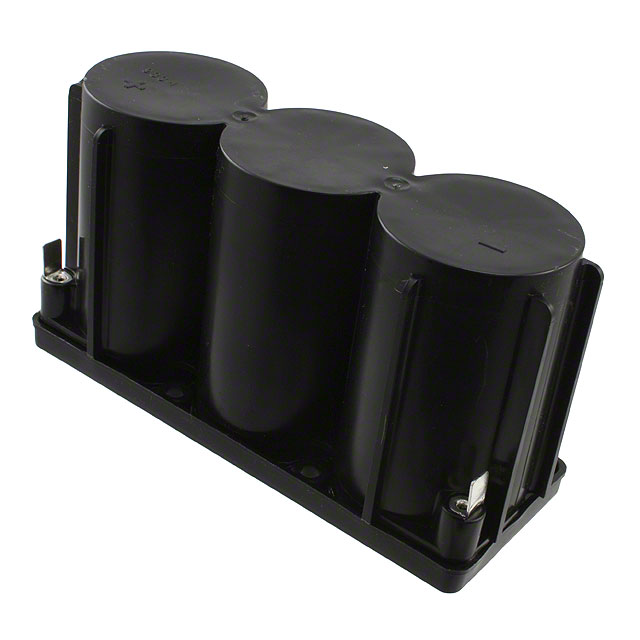

0809-0012
ObsoleteRECHARGEABLE BATTERY, CYCLON SERIES, 6 V, LEAD ACID, 5 AH, X, X, QUICK CONNECT
Deep-Dive with AI
Search across all available documentation for this part.
0809-0012
ObsoleteRECHARGEABLE BATTERY, CYCLON SERIES, 6 V, LEAD ACID, 5 AH, X, X, QUICK CONNECT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0809-0012 |
|---|---|
| Battery Cell Size | 6 V |
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 5 Ah |
| Discharge Rate | 10 Hr |
| Shelf Life | 12 Months |
| Size / Dimension [x] | 5.48 in |
| Size / Dimension [x] | 139.2 mm |
| Size / Dimension [y] | 2.12 in |
| Size / Dimension [y] | 53.8 mm |
| Size / Dimension [z] | 76.7 mm |
| Size / Dimension [z] | 3.02 " |
| Termination Style | Spade, .250" (6.3mm) |
| Voltage - Rated | 6 VDC |
| Weight | 997.9 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 90.99 | |
| 10 | $ 83.25 | |||
| 25 | $ 80.98 | |||
| 50 | $ 78.71 | |||
| 100 | $ 76.43 | |||
Description
General part information
0809-0012
The 0809-0012 is a cyclon-series X 6V/5Ah Rechargeable Battery, lead-acid technology with single cell, quick-connect terminals, a wide range of exceptionally high performance 2V cells, monoblocs and custom built packs designed for use in application using technology of spirally wound electrodes made of pure lead. The cyclone range is designed for use in applications where high rate, high temperature and fast charge is required. Charging for single cells and monoblocs - 2.35 to 2.5V/cell cyclic, 2.27 to 2.35V/cell float charge voltage. No current is required when using a voltage regulated charger.
