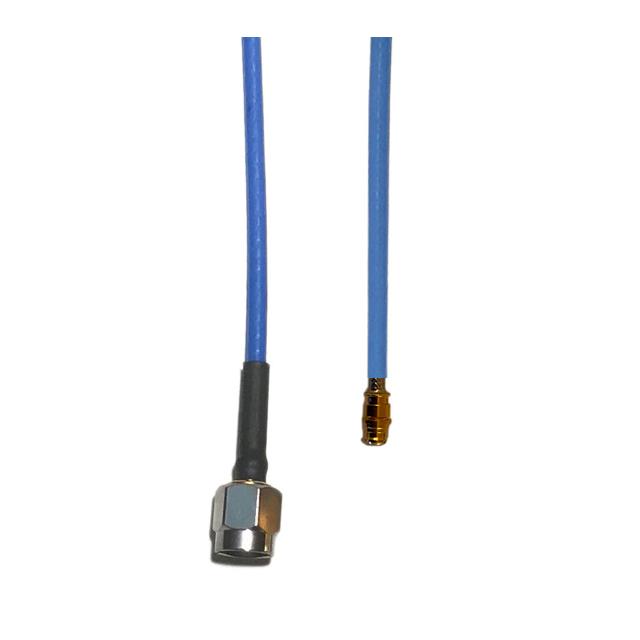

LSA28-S1PF-S18
ActiveConductRF
CBL ASSY SMA-SMP PLUG-JACK 18"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LSA28-S1PF-S18
ActiveConductRF
CBL ASSY SMA-SMP PLUG-JACK 18"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LSA28-S1PF-S18 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMP Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | 0.085 " |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 18 GHz |
| Length [x] | 457.2 mm |
| Length [x] | 457.2 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 62.49 | |
| 5 | $ 58.81 | |||
| 10 | $ 55.55 | |||
| 25 | $ 49.99 | |||
| 50 | $ 45.45 | |||
| 100 | $ 43.47 | |||
| 250 | $ 41.66 | |||
| 500 | $ 39.99 | |||
| 1000 | $ 38.46 | |||
Description
General part information
LSA28-S1PF-S18
Cable Assembly Coaxial SMA to SMP 0.085" Flexible Cable 18.00" (457.20mm)
