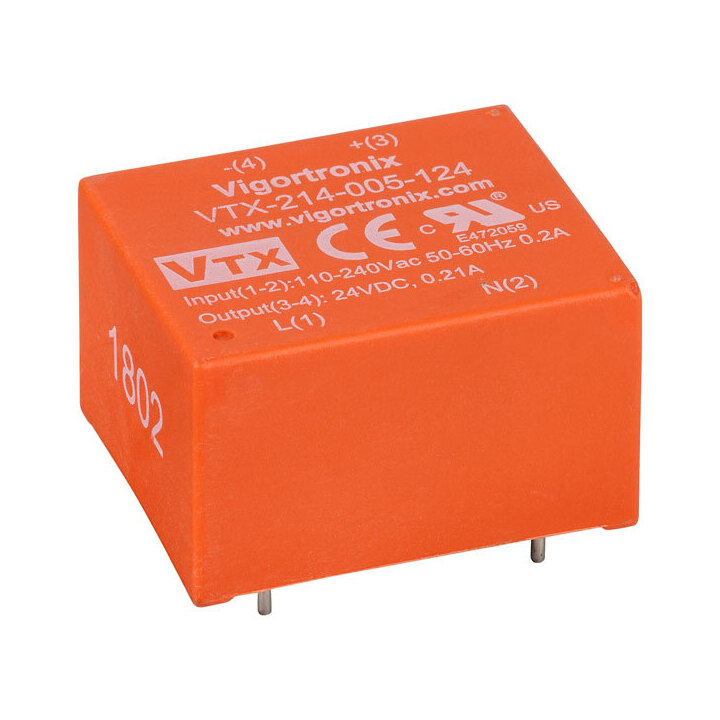

VTX-214-005-124 - VTX-214-005-109

VTX-214-005-124

Active
VIGORTRONIX

AC/DC PCB MOUNT POWER SUPPLY, CLASS II, FIXED, 90 V, 265 V, 5 W, 24 V, 208 MA ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENTechnical Data Sheet EN+1
VTX-214-005-124 - VTX-214-005-109

VTX-214-005-124

Active
VIGORTRONIX

AC/DC PCB MOUNT POWER SUPPLY, CLASS II, FIXED, 90 V, 265 V, 5 W, 24 V, 208 MA ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet ENTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationVTX-214-005-124
ApplicationsHousehold Appliances, ITE (Commercial)
Approval AgencyEN, IEC, UL
Current - Output (Max) [Max]208 mA
Efficiency70 %
Mounting TypeThrough Hole
Number of Outputs1
Package / Case4-DIP Module
Power (Watts)5 W
Standard Number61000, 62368-1, 61558-2
TypeEnclosed
Voltage - Input [Max]370 VDC, 264 VAC
Voltage - Input [Min]100 V, 90 VAC
Voltage - Output 124 V
Weight32 g
Weight0.071 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 16.06
NewarkEach 1$ 13.57
5$ 12.46
10$ 12.20
25$ 11.96
50$ 11.45
100$ 10.52
250$ 9.61

Description

General part information

VTX-214-005-124

Enclosed AC DC Converters 1 Output 24V 208mA 90 ~ 264 VAC, 100 ~ 370 VDC Input
