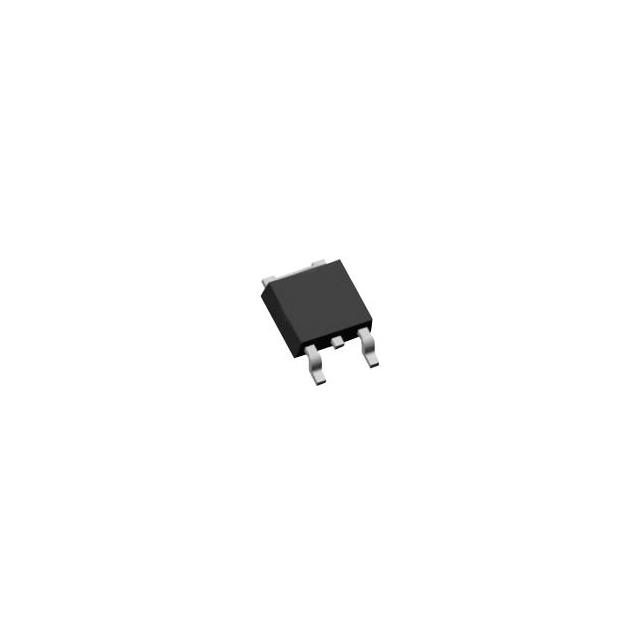

GSFD1550
ActiveGood-Ark Semiconductor
MOSFET, N-CH, SINGLE, 50A, 150V,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSFD1550
ActiveGood-Ark Semiconductor
MOSFET, N-CH, SINGLE, 50A, 150V,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSFD1550 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 50 A |
| Drain to Source Voltage (Vdss) | 150 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 60 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 3450 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Power Dissipation (Max) [Max] | 133 W |
| Rds On (Max) @ Id, Vgs | 22 mOhm |
| Supplier Device Package | TO-252 (DPAK) |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.86 | |
| 10 | $ 1.85 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.29 | |||
| 250 | $ 1.15 | |||
| 500 | $ 1.06 | |||
| 1000 | $ 0.99 | |||
| Digi-Reel® | 1 | $ 2.86 | ||
| 10 | $ 1.85 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.29 | |||
| 250 | $ 1.15 | |||
| 500 | $ 1.06 | |||
| 1000 | $ 0.99 | |||
| Tape & Reel (TR) | 2500 | $ 0.91 | ||
| 5000 | $ 0.86 | |||
| 7500 | $ 0.84 | |||
Description
General part information
GSFD1550
N-Channel 150 V 50A (Tc) 133W (Tc) Surface Mount TO-252 (DPAK)
