96022124
ActiveBopla Enclosures
BOX PLASTIC 4.45"L X 3.15"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
96022124
ActiveBopla Enclosures
BOX PLASTIC 4.45"L X 3.15"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 96022124 |
|---|---|
| Area (L x W) [custom] | 14 in² |
| Area (L x W) [custom] | 90 cm² |
| Color | Gray, Clear Cover/Door |
| Container Type | Box |
| Design | Hinged Door, Lid |
| Features | PCB Supports, Flame Retardant |
| Height [z] | 2.362 in |
| Height [z] | 60 mm |
| Material | Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Ratings | IP66, IP67 |
| Size / Dimension [x] | 113 mm |
| Size / Dimension [x] | 4.449 in |
| Size / Dimension [y] | 3.15 in |
| Size / Dimension [y] | 80 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 26.20 | |
| 5 | $ 22.39 | |||
| 10 | $ 20.92 | |||
| 25 | $ 19.13 | |||
| 50 | $ 17.88 | |||
| 100 | $ 17.32 | |||
Description
General part information
96022124

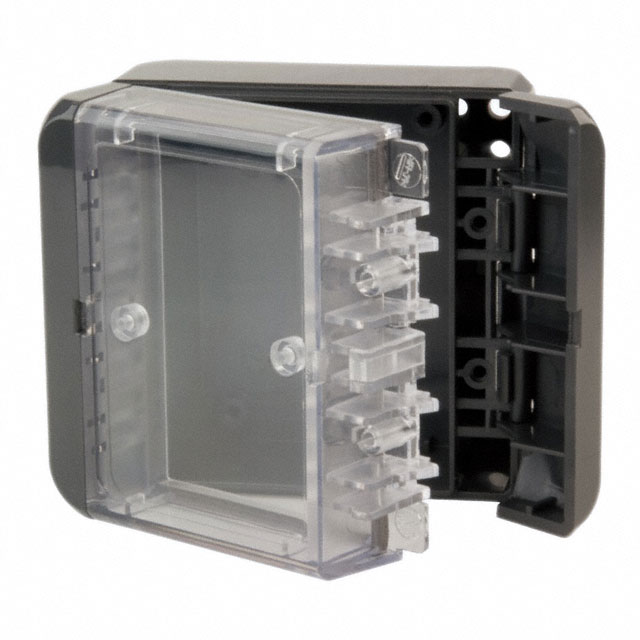

Box Plastic, Polycarbonate Gray, Clear Cover/Door Hinged Door, Lid 4.449" L x 3.150" W (113.00mm x 80.00mm) X 2.362" (60.00mm)
