WL-19040251

Active

WAMCO

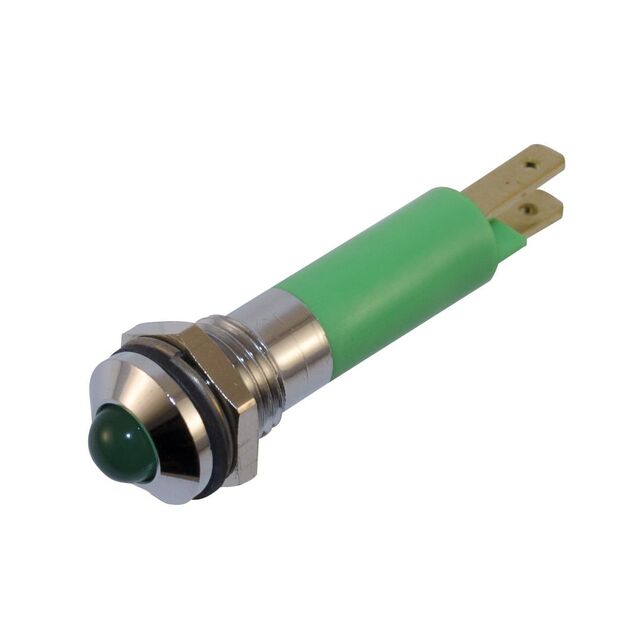

LED PANEL MOUNT INDICATOR, SATIN CHROME BEZEL, GREEN, 12 VDC, 8 MM, 20 MA, 40 MCD, IP67

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

WL-19040251

Active

WAMCO

LED PANEL MOUNT INDICATOR, SATIN CHROME BEZEL, GREEN, 12 VDC, 8 MM, 20 MA, 40 MCD, IP67

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WL-19040251

Lens Color	Green
Lens Style	Round with Domed Top
Millicandela Rating	40 mcd
Panel Cutout Dimensions	8 mm
Panel Cutout Dimensions	0.315 in
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Quick Connect
Termination Style	0.354 in
Termination Style	9 mm
Type	LED
Voltage	12 V
Wavelength - Peak	568 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 4.10
		100	$ 3.80
Newark	Each	1	$ 4.31
		10	$ 3.96
		25	$ 3.86
		50	$ 3.76
		100	$ 3.66
		250	$ 3.52
		500	$ 3.38
		1000	$ 3.23

Description

General part information

WL-19040251

The WL-19040251 is a 12V 8mm panel-mount green LED Indicator withtab termination and prominent satin chrome bezel. It features 40mcd luminous intensity, 568nm dominant wavelength and ±10% voltage tolerance.
