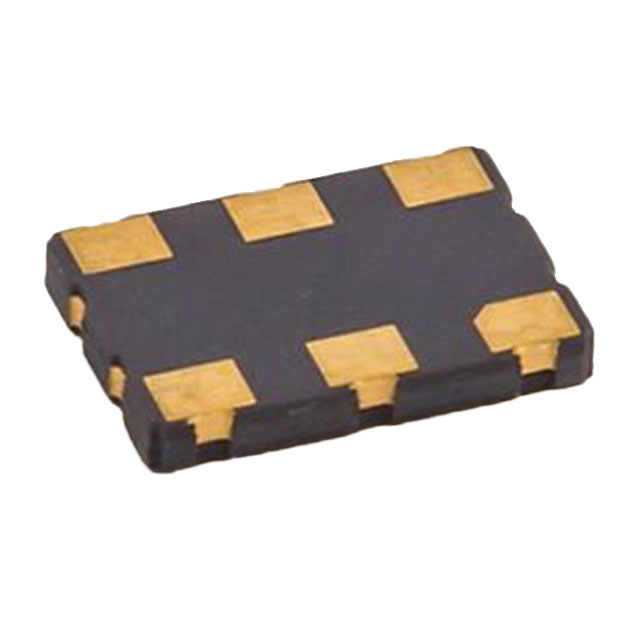

CL7050-155.520-2.5-25-X-T-TR
ActiveRaltron Electronics
XTAL OSC XO 155.52MHZ 2.5V LVDS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CL7050-155.520-2.5-25-X-T-TR
ActiveRaltron Electronics
XTAL OSC XO 155.52MHZ 2.5V LVDS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CL7050-155.520-2.5-25-X-T-TR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 60 mA |
| Frequency | 155.52 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) | 1.6 mm |
| Height - Seated (Max) [Max] | 0.063 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVDS |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.50 | |
| Digi-Reel® | 1 | $ 4.50 | ||
| Tape & Reel (TR) | 100 | $ 4.32 | ||
| 200 | $ 3.96 | |||
| 300 | $ 3.86 | |||
| 500 | $ 3.74 | |||
| 700 | $ 3.67 | |||
| 1000 | $ 3.59 | |||
| 2500 | $ 3.39 | |||
Description
General part information
CL7050-155.520-2.5-25-X-T-TR
155.52 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead
