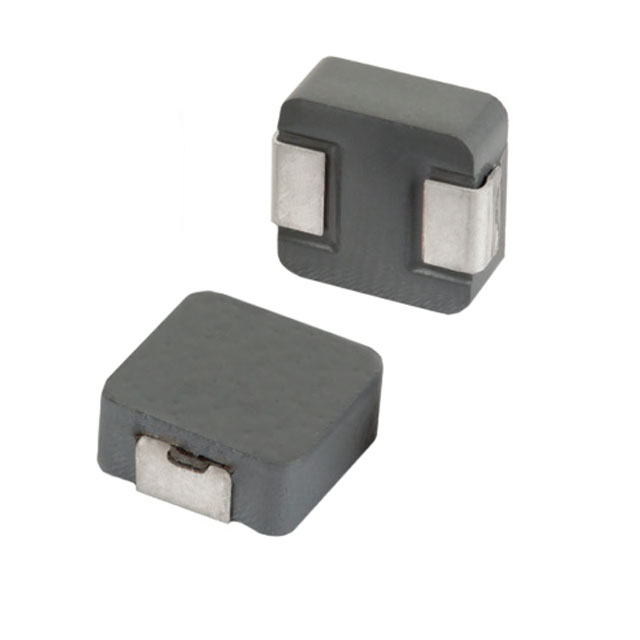

MGV1207R47M-10
ActiveLaird Technologies - Thermal Materials
FIXED IND 470NH 41A 1.2 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGV1207R47M-10
ActiveLaird Technologies - Thermal Materials
FIXED IND 470NH 41A 1.2 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGV1207R47M-10 |
|---|---|
| Current - Saturation (Isat) | 63 A |
| Current Rating (Amps) | 41 A |
| DC Resistance (DCR) [Max] | 1.2 mOhm |
| Height - Seated (Max) [Max] [z] | 0.256 in |
| Height - Seated (Max) [Max] [z] | 6.5 mm |
| Inductance | 470 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.531 in |
| Size / Dimension [x] | 13.5 mm |
| Size / Dimension [y] | 12.6 mm |
| Size / Dimension [y] | 0.496 in |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.64 | |
| Digi-Reel® | 1 | $ 2.64 | ||
| Tape & Reel (TR) | 2000 | $ 1.16 | ||
Description
General part information
MGV1207R47M-10
470 nH Shielded Molded Inductor 41 A 1.2mOhm Max Nonstandard
