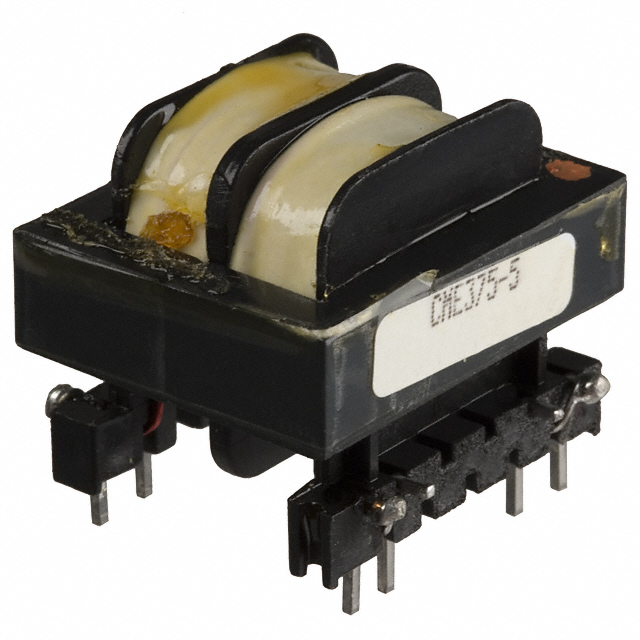

CME375-5
ActiveTRIAD MAGNETICS
COMMON MODE INDUCTOR-28.6MH@2.2ARMS/CME375-5 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CME375-5 |
|---|---|
| Approval Agency | CSA, UL, VDE, IEC |
| Current Rating (Max) [Max] | 2.7 A |
| DC Resistance (DCR) (Max) [Max] | 196 mOhm |
| Filter Type | Power Line |
| Height (Max) | 29.97 mm |
| Height (Max) [Max] | 1.18 in |
| Inductance @ Frequency | 17.8 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 1.5 in |
| Size / Dimension [x] | 38.1 mm |
| Size / Dimension [y] | 1.26 in |
| Size / Dimension [y] | 32 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CME375-5
17.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2.7A DCR 196mOhm
