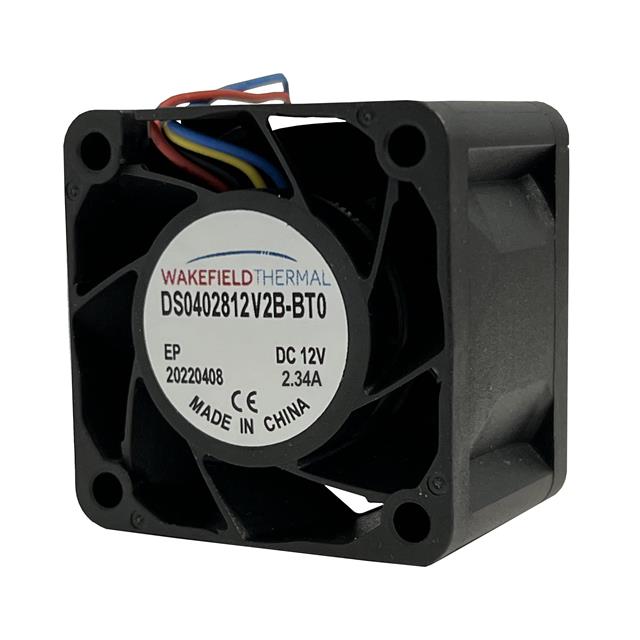

DS0402812V2B-BT0
ActiveWakefield-Vette
FAN AXIAL 40X28MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS0402812V2B-BT0
ActiveWakefield-Vette
FAN AXIAL 40X28MM 12VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DS0402812V2B-BT0 |
|---|---|
| Air Flow | 35 CFM |
| Air Flow | 0.98 m³/min |
| Approval Agency | CE |
| Bearing Type | Ball |
| Current Rating (Amps) | 2.34 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), PWM Control |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 67.5 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 28.08 W |
| RPM | 30000 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 5.888 in H2O |
| Static Pressure | 1466.6 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated | 12 VDC |
| Width [y] | 28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.91 | |
| 10 | $ 14.59 | |||
Description
General part information
DS0402812V2B-BT0
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 35.0 CFM (0.980mł/min) 4 Wire Leads
