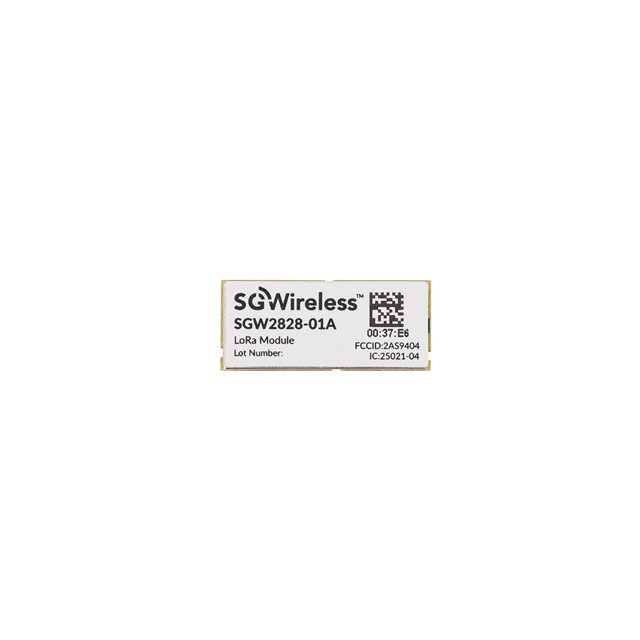

SGW2828-01A
ActiveSG Wireless
RF TXRX MOD ISM<1GHZSMD
Deep-Dive with AI
Search across all available documentation for this part.
SGW2828-01A
ActiveSG Wireless
RF TXRX MOD ISM<1GHZSMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SGW2828-01A |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 21.8 kbps |
| Frequency [Max] | 928 MHz |
| Frequency [Min] | 902 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 39-SMD Module |
| Power - Output | 30 dBm |
| Protocol | LoRa |
| RF Family/Standard | General ISM < 1GHz |
| Serial Interfaces | UART, USB |
| Utilized IC / Part | STM32L072KBU6 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SGW2828-01A
General ISM < 1GHz LoRa Transceiver Module 902MHz ~ 928MHz Antenna Not Included Surface Mount
Documents
Technical documentation and resources
