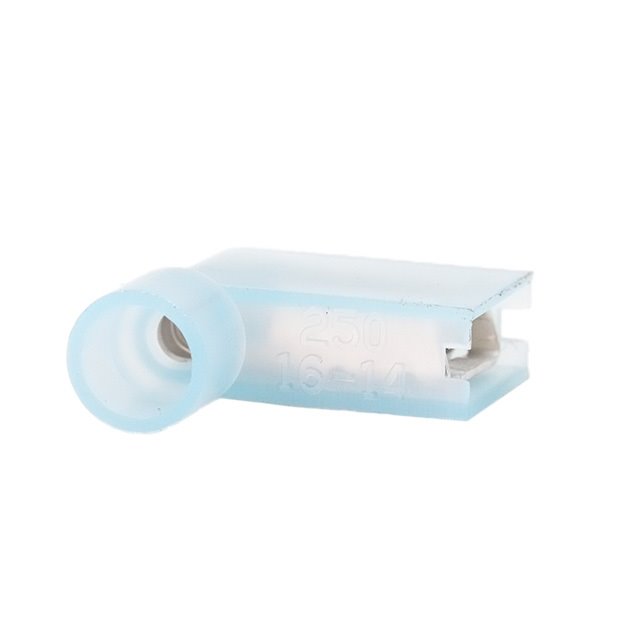

FNDF18141T
ActiveAmphenol TPC Wire & Cable
CONN QC RCPT 18-14 AWG F .250
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FNDF18141T
ActiveAmphenol TPC Wire & Cable
CONN QC RCPT 18-14 AWG F .250
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FNDF18141T |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Length - Overall | 0.598 in |
| Length - Overall | 15.2 mm |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Tab Length | 0.299 in |
| Tab Length | 7.6 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.17 | |
| 2000 | $ 0.16 | |||
| 4000 | $ 0.16 | |||
Description
General part information
FNDF18141T
0.250" (6.35mm) Quick Connect Female 14-18 AWG Crimp Connector Fully Insulated
