XCL105D351H2-G
ActiveTorex Semiconductor Ltd
1.4A, INDUCTOR BUILT-IN STEP-UP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XCL105D351H2-G
ActiveTorex Semiconductor Ltd
1.4A, INDUCTOR BUILT-IN STEP-UP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XCL105D351H2-G |
|---|---|
| Applications | ITE (Commercial) |
| Features | Remote On/Off, Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-PowerLFDFN Module |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [x] | 0.12 in |
| Size / Dimension [y] | 0.12 " |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [z] | 0.07 " |
| Size / Dimension [z] | 1.7 mm |

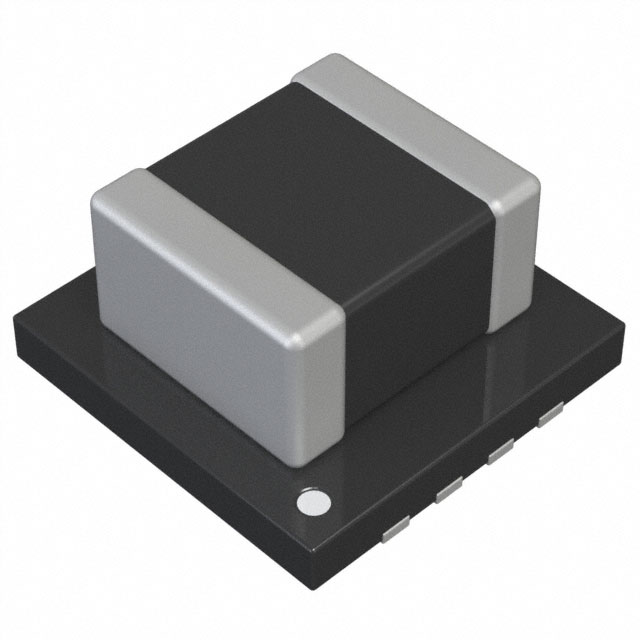

| Supplier Device Package | DFN3030-10B |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 0.65 V |
| Voltage - Output 1 | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 1.09 | |
| 6000 | $ 1.05 | |||
Description
General part information
XCL105D351H2-G
Non-Isolated PoL Module DC DC Converter 1 Output 3.5V 0.65V - 6V Input
