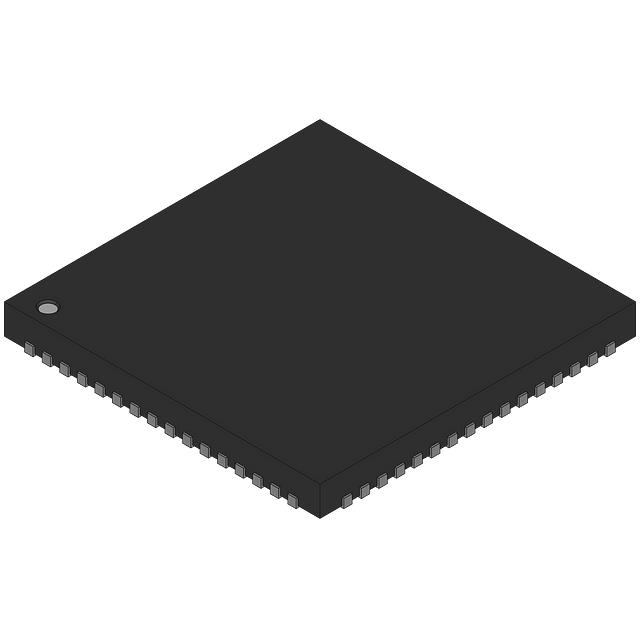

ATSAM3N00BA-MU
ActiveAtmel
IC MCU 32BIT 16KB FLASH 64QFN
Deep-Dive with AI
Search across all available documentation for this part.
ATSAM3N00BA-MU
ActiveAtmel
IC MCU 32BIT 16KB FLASH 64QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATSAM3N00BA-MU |
|---|---|
| Connectivity | IrDA, UART/USART, I2C, SPI |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Data Converters | D/A 1x10b, A/D 10x10b |
| Mounting Type | Surface Mount |
| Number of I/O | 47 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 64-VFQFN Exposed Pad |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT, PWM |
| Program Memory Size | 16 KB |
| Program Memory Type | FLASH |
| RAM Size | 4K x 8 |
| Speed | 48 MHz |
| Supplier Device Package | 64-QFN (9x9) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 85 | $ 3.57 | |
| Tray | 260 | $ 2.91 | ||
Description
General part information
ATSAM3N00BA-MU
ARM® Cortex®-M3 SAM3N Microcontroller IC 32-Bit Single-Core 48MHz 16KB (16K x 8) FLASH 64-QFN (9x9)
Documents
Technical documentation and resources
No documents available
