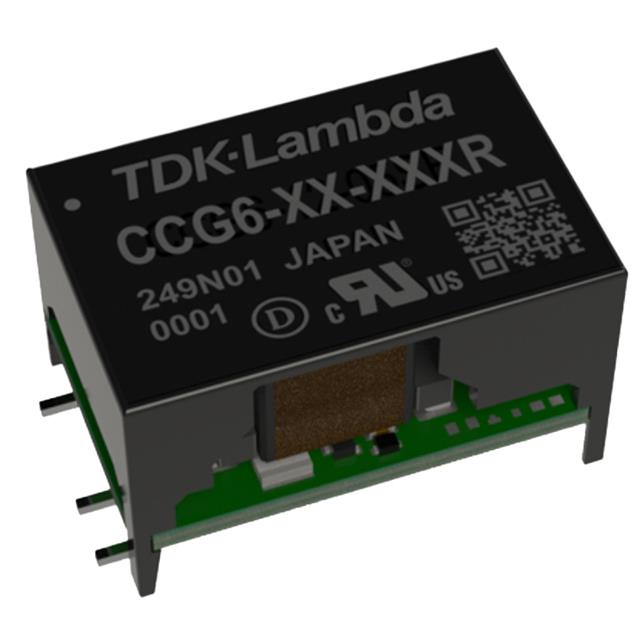

CCG6-48-12SR

Active

TDK-LAMBDA

DC-DC CONVERTER, 12V, 0.5A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

TDK-LAMBDA

DC-DC CONVERTER, 12V, 0.5A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	CCG6-48-12SR

Applications	ITE (Commercial)
Approval Agency	CE, CSA, EN, UL, IEC, UKCA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	500 mA
Efficiency	87 %
Features	OCP, Remote On/Off, Adjustable Output
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	95 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-SMD Module
Power (Watts)	6 W
Size / Dimension [x]	19 mm
Size / Dimension [x]	0.75 in
Size / Dimension [y]	12.4 mm
Size / Dimension [y]	0.49 in
Size / Dimension [z]	11.8 mm
Size / Dimension [z]	0.46 in
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	76 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 500mA 18V - 76V Input
