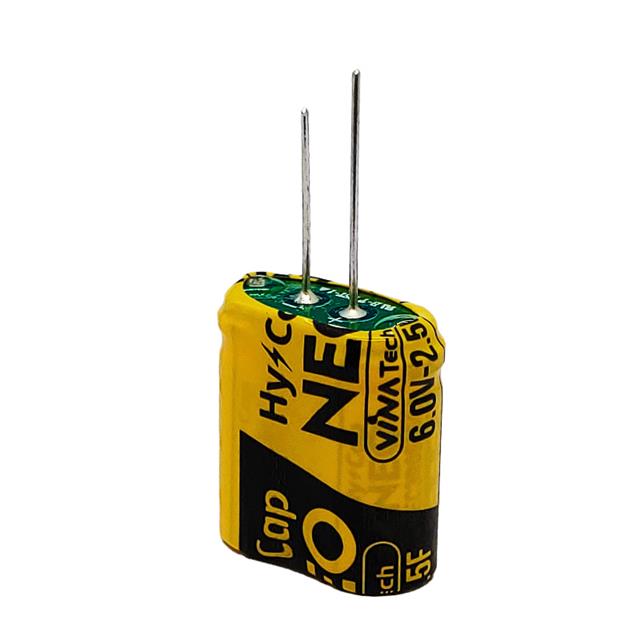

WEC6R0255QG-I
ActiveVINATech Co LTD
2.5F 6.0V 10.5*21*22.5 EDLC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WEC6R0255QG-I
ActiveVINATech Co LTD
2.5F 6.0V 10.5*21*22.5 EDLC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WEC6R0255QG-I |
|---|---|
| Capacitance | 2.5 F |
| ESR (Equivalent Series Resistance) | 165 mOhm |
| Height - Seated (Max) [Max] [z] | 0.945 in |
| Height - Seated (Max) [Max] [z] | 24 mm |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 0.827 in, 21 mm |
| Size / Dimension [y] | 10.5 mm, 0.413 in |
| Termination | PC Pins |
| Tolerance [Max] | 30 % |
| Tolerance [Min] | -10 % |
| Voltage - Rated | 6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5.49 | |
| 10 | $ 3.72 | |||
| 50 | $ 3.01 | |||
| 100 | $ 2.78 | |||
| 500 | $ 2.40 | |||
| 1000 | $ 2.28 | |||
| 2500 | $ 2.15 | |||
Description
General part information
WEC6R0255QG-I
2.5 F (EDLC) Supercapacitor 6 V Radial 165mOhm @ 1kHz 1000 Hrs @ 65°C
