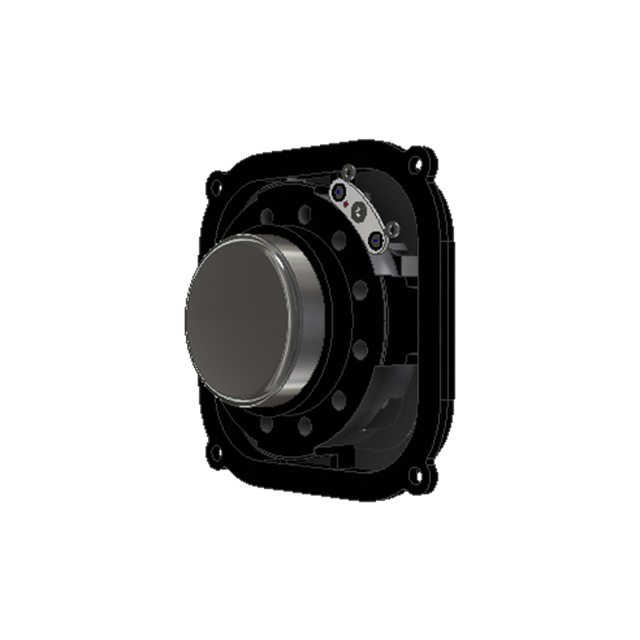

AS06004PS-R
ActivePUI AUDIO
SPEAKER 4OHM 10W TOP PORT 99DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AS06004PS-R
ActivePUI AUDIO
SPEAKER 4OHM 10W TOP PORT 99DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AS06004PS-R |
|---|---|
| Efficiency - dBA | 99 dBA |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 160 Hz |
| Frequency Range [Max] | 18 kHz |
| Frequency Range [Min] | 160 Hz |
| Height - Seated (Max) [Max] [z] | 1.043 in |
| Height - Seated (Max) [Max] [z] | 26.5 mm |
| Impedance | 4 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 15 W |
| Power - Rated | 10 W |
| Ratings | IEC 60601-1-8 |
| Shape | Square Frame, Round |
| Size / Dimension [x] | 66.8 mm |
| Size / Dimension [x] | 2.63 " |
| Size / Dimension [y] | 66.8 mm |
| Size / Dimension [y] | 2.63 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.98 | |
| 10 | $ 17.92 | |||
| 25 | $ 16.44 | |||
| 50 | $ 15.53 | |||
Description
General part information
AS06004PS-R
4 Ohms General Purpose Speaker 10 W 160 Hz ~ 18 kHz Top Round, Square Frame
