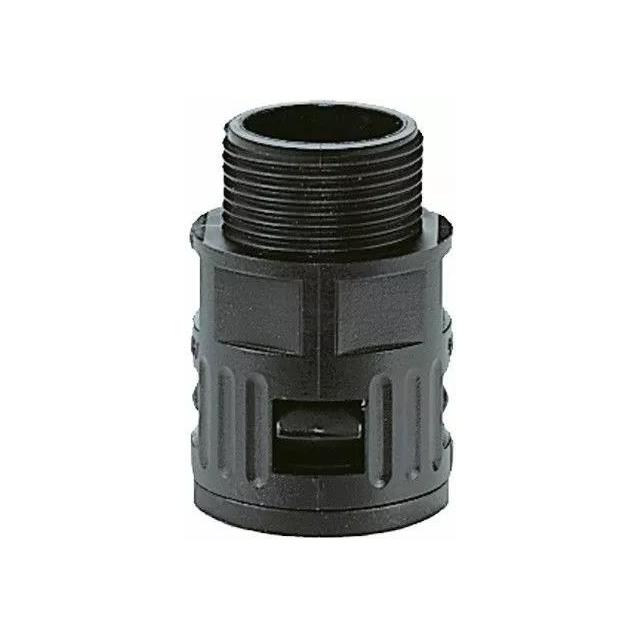

5020.056.204
ActiveFlexa
RQG, STRAIGHT CONNECTOR, IP69K,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5020.056.204
ActiveFlexa
RQG, STRAIGHT CONNECTOR, IP69K,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5020.056.204 |
|---|---|
| Color | Black |
| Ingress Protection | IP68, IP69K |
| Material | Polyamide (PA), Nylon |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Outside Cable Diameter (Max) [Max] [diameter] | 23.11 mm |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.91 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.49 " |
| Outside Cable Diameter (Min) [Min] [diameter] | 12.45 mm |
| Thread Length | 0.37 in |
| Thread Length | 9.4 mm |
| Thread Size | 3/8" NPT |
| Type | Cable Gland |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 210.00 | |
Description
General part information
5020.056.204
Cable Gland Polyamide (PA), Nylon 3/8" NPT Black
