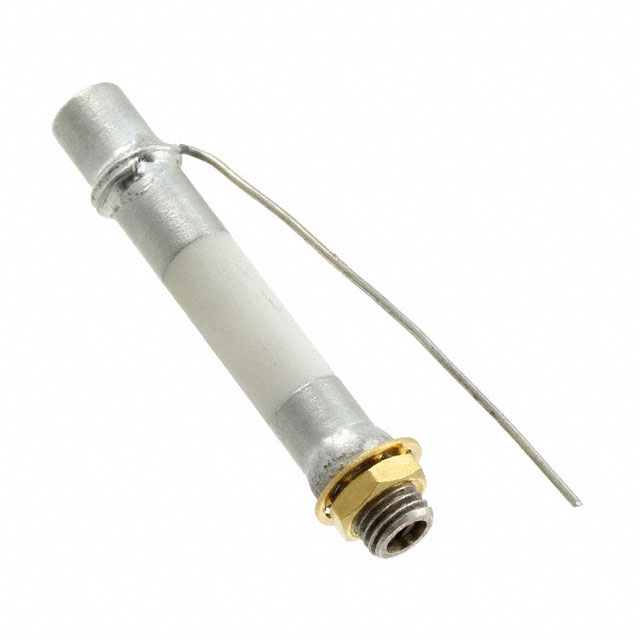

SGNMNC1059
ObsoleteSprague-Goodman
CAP TRIM 0.5-5PF 8750V CHAS MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SGNMNC1059
ObsoleteSprague-Goodman
CAP TRIM 0.5-5PF 8750V CHAS MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SGNMNC1059 |
|---|---|
| Capacitance Range [Max] | 5 pF |
| Capacitance Range [Min] | 0.5 pF |
| Dielectric Material | Ceramic |
| Features | Sealed, Non-Magnetic |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Q @ Freq | 25 MHz, 2000 |
| Size / Dimension | 6.86 mm |
| Size / Dimension [diameter] | 0.27 in |
| Voltage - Rated | 8750 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 172.24 | |
Description
General part information
SGNMNC1059
0.5 ~ 5pF Trimmer Capacitor 8750 V Chassis Mount
