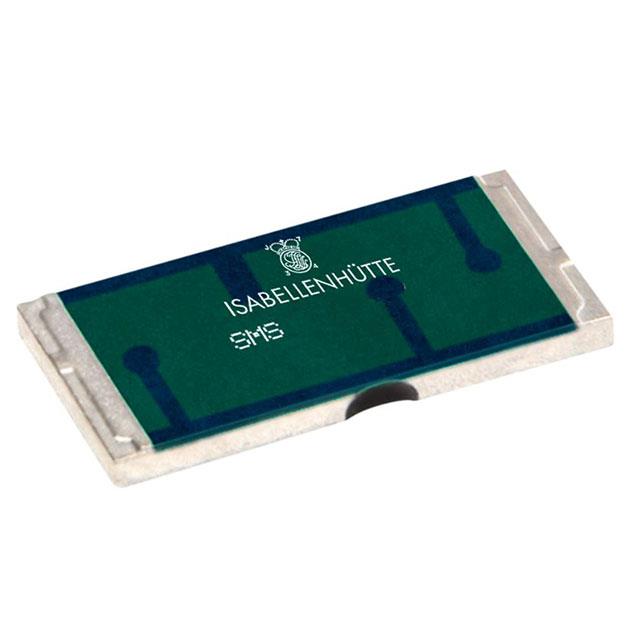

SMS-R040-0.5
ActiveIsabellenhuette USA
RESISTOR - ISA-PLAN SHUNT, 0.04,
Deep-Dive with AI
Search across all available documentation for this part.
SMS-R040-0.5
ActiveIsabellenhuette USA
RESISTOR - ISA-PLAN SHUNT, 0.04,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMS-R040-0.5 |
|---|---|
| Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding, Moisture Resistant |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | 6432 Metric |
| Package / Case | 2512 |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 0.25 " |
| Size / Dimension [x] | 6.35 mm |
| Size / Dimension [y] | 3.05 mm |
| Size / Dimension [y] | 0.12 " |
| Supplier Device Package | 2512 |
| Temperature Coefficient | 50 ppm/°C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 1.20 | |
Description
General part information
SMS-R040-0.5
40 mOhms ±0.5% 5W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
