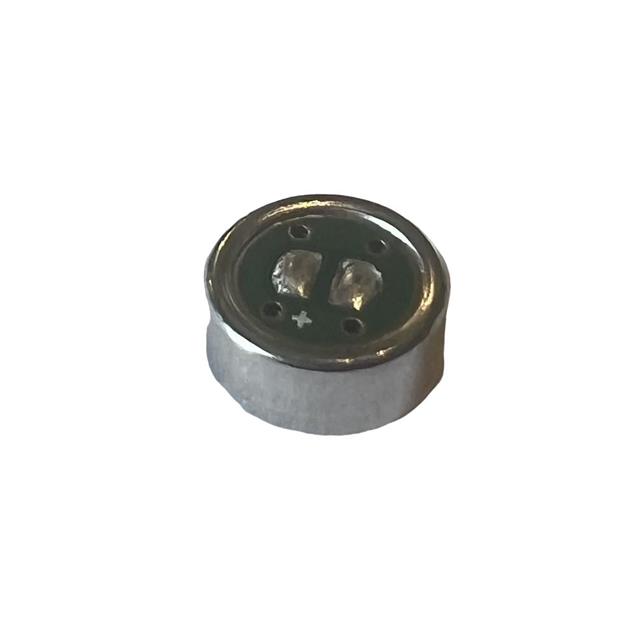

TM141061
ActiveTop Shelf Acoustics, LLC
BI (NOISE CANCELLING) MICROPHONE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TM141061 |
|---|---|
| Current - Supply | 500 µA |
| Direction | Noise Cancelling |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 50 Hz |
| Height (Max) [Max] | 0.106 in |
| Height (Max) [Max] | 2.7 mm |
| Impedance | 2 kOhms |
| Output Type | Analog |
| Port Location | Bottom |
| S/N Ratio | 55 dB |
| Sensitivity | -51 dB |
| Shape | Circular |
| Size / Dimension [diameter] | 6 mm |
| Size / Dimension [diameter] | 0.236 in |
| Termination | Solder Pads |
| Type | Electret Condenser |
| Voltage - Rated | 2 VDC |
| Voltage Range [Max] | 10 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.63 | |
Description
General part information
TM141061
50 Hz ~ 10 kHz Analog Microphone Electret Condenser 1 V ~ 10 V Noise Cancelling (-51dB ±3dB) Solder Pads
