6355-0099-13
ActiveEncitech Connectors AB

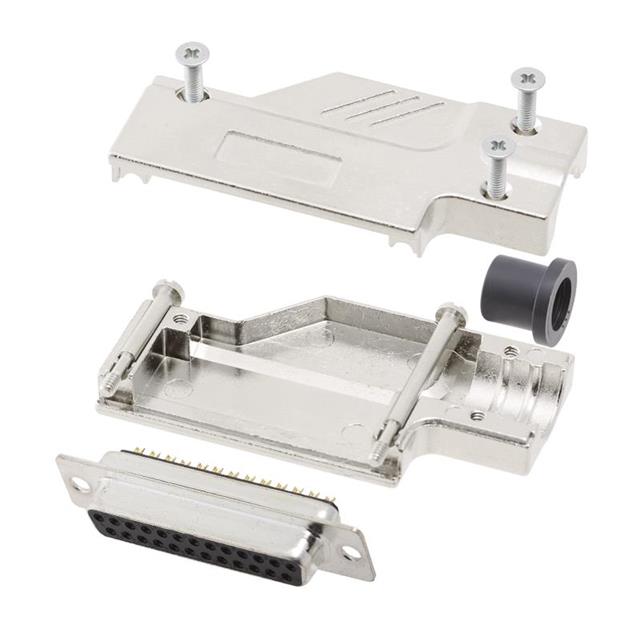

D-SUB BACKSHELL, FULL METAL, 90
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6355-0099-13
ActiveEncitech Connectors AB
D-SUB BACKSHELL, FULL METAL, 90
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6355-0099-13 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Assembly |
| Flange Feature | Cable Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Primary Material | Metal |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.29 | |
| 10 | $ 11.76 | |||
| 25 | $ 10.63 | |||
| 50 | $ 9.87 | |||
| 100 | $ 9.18 | |||
| 250 | $ 8.37 | |||
| 500 | $ 7.82 | |||
| 1000 | $ 7.32 | |||
Description
General part information
6355-0099-13
25 Position D-Sub Receptacle, Female Sockets Connector
