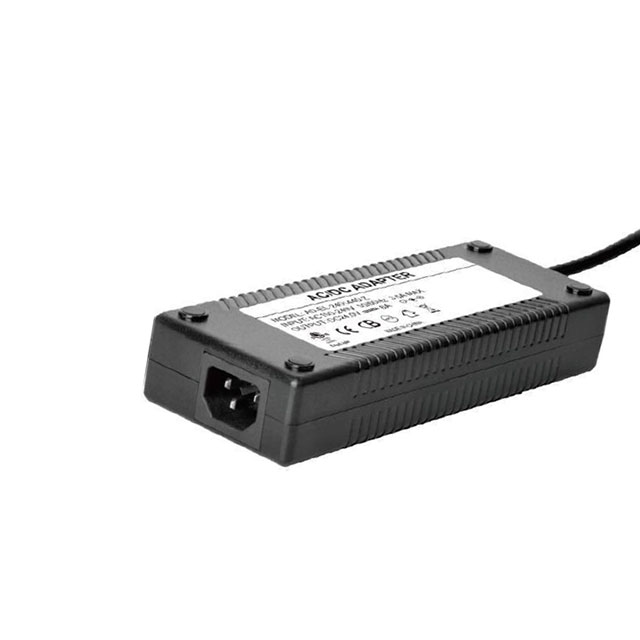

AC/DC DESKTOP ADAPTER 24V 144W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AD-EL-2401440-Z
ActiveEdgelight LLC
AC/DC DESKTOP ADAPTER 24V 144W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AD-EL-2401440-Z |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CB, UL, CE |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 91 % |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord (Included) |
| No Load Power Consumption | 850 mW |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Polarization | Positive Center |
| Power (Watts) | 144 W |
| Region Utilized | International |
| Size / Dimension [x] | 171.5 mm |
| Size / Dimension [x] | 6.75 in |
| Size / Dimension [y] | 72 mm |
| Size / Dimension [y] | 2.83 in |
| Size / Dimension [z] | 1.3 " |
| Size / Dimension [z] | 33.1 mm |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 37.04 | |
| 50 | $ 36.04 | |||
| 100 | $ 34.04 | |||
Description
General part information
AD-EL-2401440-Z
24V 144 W AC/DC External Desktop (Class I) Adapter Cord (Included) Input
