CONN D-SUB PLUG 15POS SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
09670155604
ActiveHARTING Technology Group
CONN D-SUB PLUG 15POS SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09670155604 |
|---|---|
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 7.5 A |
| Dielectric Material | Glass Filled, Polybutylene Terephthalate (PBT), Polyester |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Steel |
| Shell Size, Connector Layout | 2 |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.82 | |
| 10 | $ 8.49 | |||
| 25 | $ 7.54 | |||
| 50 | $ 6.93 | |||
| 100 | $ 6.40 | |||
| 250 | $ 5.79 | |||
| 500 | $ 5.40 | |||
| 1000 | $ 5.05 | |||
Description
General part information
09670155604

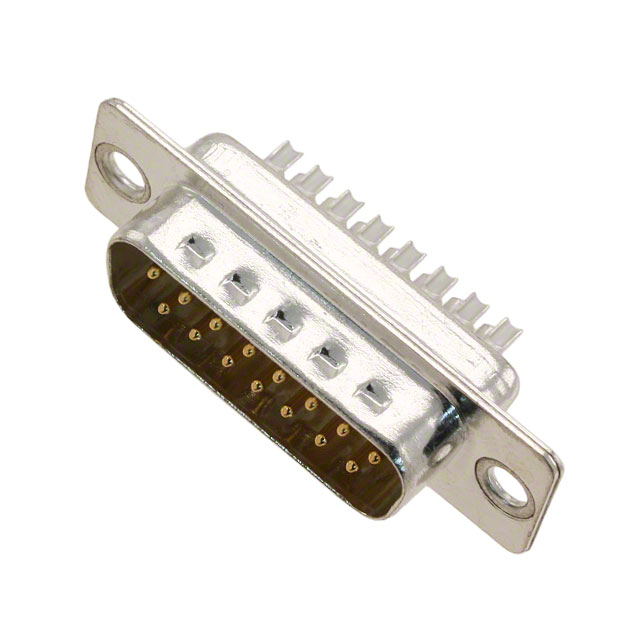

15 Position D-Sub Plug, Male Pins Connector
