PF25-48W4
ActiveNippon Pulse America, Inc.

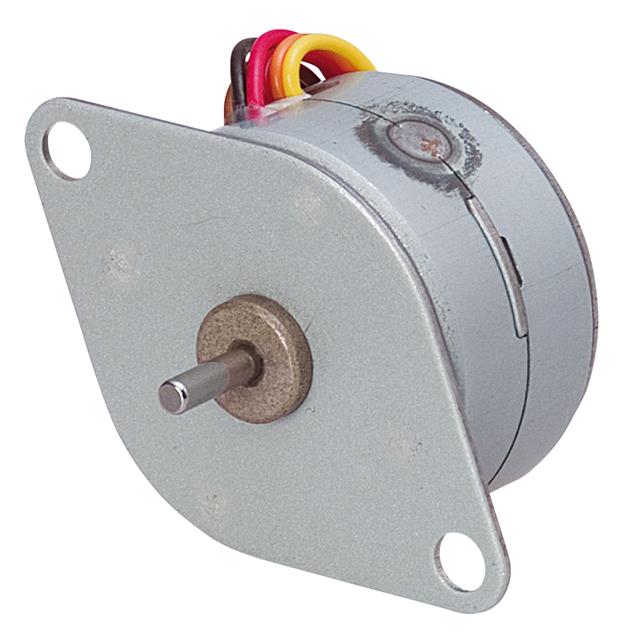

TIN-CAN STEP MOTOR 48 STEPS 2.1V
Deep-Dive with AI
Search across all available documentation for this part.
PF25-48W4
ActiveNippon Pulse America, Inc.
TIN-CAN STEP MOTOR 48 STEPS 2.1V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PF25-48W4 |
|---|---|
| Diameter - Shaft [diameter] | 2 mm |
| Diameter - Shaft [diameter] | 0.079 in |
| Features | Round Shaft |
| Length - Shaft and Bearing | 0.323 in |
| Length - Shaft and Bearing | 8.2 mm |
| Mounting Hole Spacing | 1.26 in |
| Mounting Hole Spacing | 32 mm |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Size / Dimension [diameter] | 0.984 " |
| Size / Dimension [diameter] | 25 mm |
| Step Angle | 7.5 ° |
| Termination Style | Wire Leads |
| Type | Permanent Magnet |
| Voltage - Rated | 2.1 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.00 | |
Description
General part information
PF25-48W4
Stepper Motor Permanent Magnet Frame Size 48.0 Step 2.1VDC
