53-124589
ActiveTurboFlex Heaters

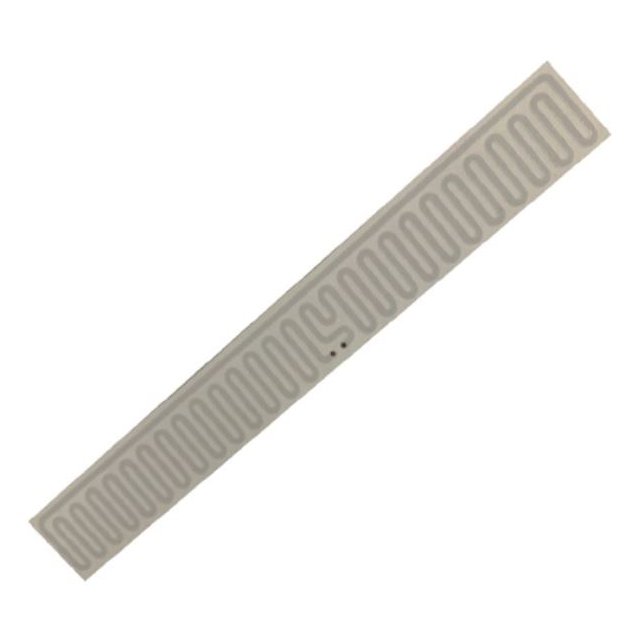

FLEX HEATER POLYESTER 12" WIRE
Deep-Dive with AI
Search across all available documentation for this part.
53-124589
ActiveTurboFlex Heaters
FLEX HEATER POLYESTER 12" WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 53-124589 |
|---|---|
| Approval Agency | UL |
| Attachment Method | Pressure Sensitive Adhesive (PSA) |
| Color | Off-White |
| Features | Leads Potted, User Selectable Voltage |
| Length | 76.2 mm |
| Length | 2.5 ft |
| Length - Lead Wire [x] | 12 in |
| Length - Lead Wire [x] | 304.8 mm |
| Material | Polyester |
| Material - Insulation | Polytetrafluoroethylene (PTFE) |
| Power (Watts) | 1.8 kW |
| Resistance | 0.1 Ohms |
| Shape | Rectangular |
| Temperature Rating | 121 °C |
| Temperature Rating | 250 °F |
| Termination | Wire Leads |
| Type | Flexible Heater, Foil |
| Watt Density @ 12V | 10 W/in² |
| Width [y] | 152.4 mm |
| Width [y] | 6 in |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 75.00 | |
| 6 | $ 71.25 | |||
| 26 | $ 67.50 | |||
Description
General part information
53-124589
FLEX HEATER POLYESTER 12" WIRE
Documents
Technical documentation and resources
No documents available
