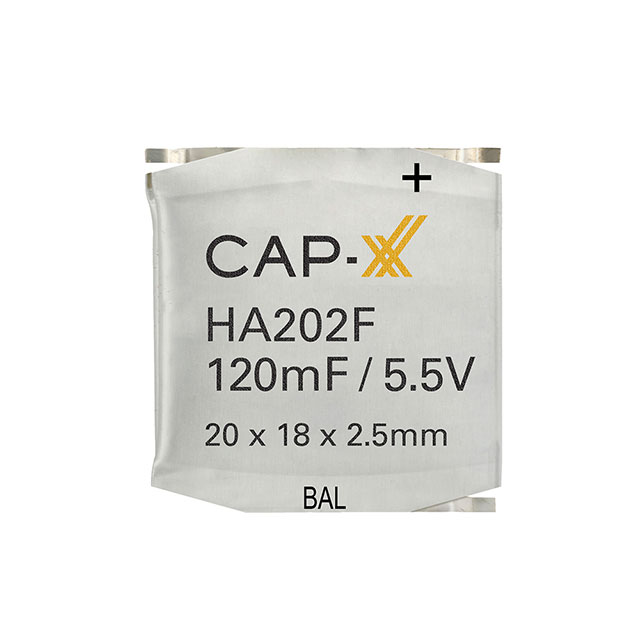

HA202F
ActiveCAP-XX Ltd Supercapacitors
CAP 120MF 5.5V -40-+85C
Deep-Dive with AI
Search across all available documentation for this part.
HA202F
ActiveCAP-XX Ltd Supercapacitors
CAP 120MF 5.5V -40-+85C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HA202F |
|---|---|
| Capacitance | 0.12 F |
| ESR (Equivalent Series Resistance) | 144 mOhm |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SMD |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [y] | 0.709 in |
| Size / Dimension [y] | 18 mm |
| Tolerance | 20 % |
| Voltage - Rated | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.00 | |
| 100 | $ 15.00 | |||
| 200 | $ 12.34 | |||
| 500 | $ 10.85 | |||
| 1000 | $ 9.35 | |||
| 2000 | $ 7.85 | |||
Description
General part information
HA202F
120 mF (EDLC) Supercapacitor 5.5 V 3-SMD 144mOhm
Documents
Technical documentation and resources
No documents available
