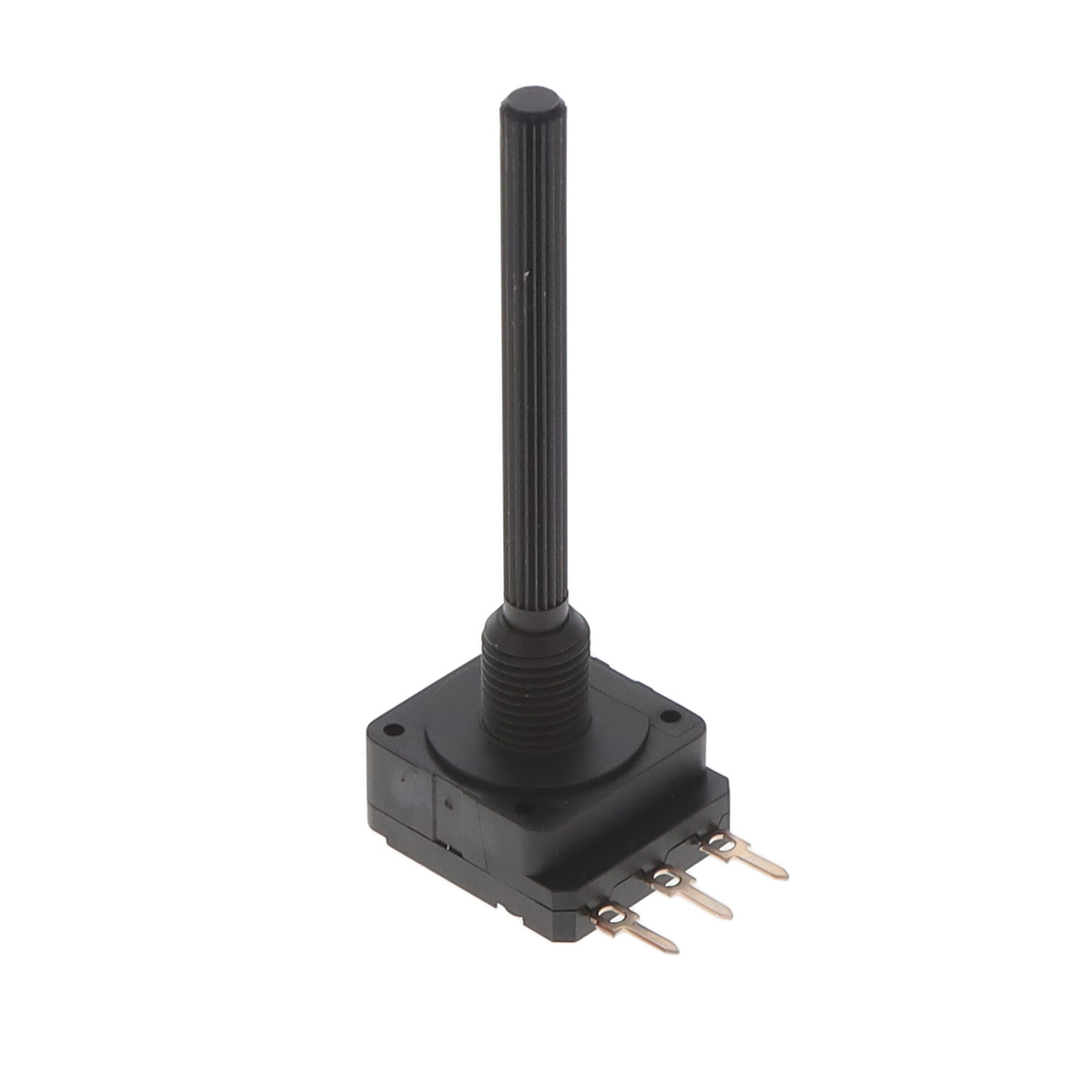

PC16SH-07IP04-224A2020-TA
ActiveAmphenol Piher Sensing Systems
POT 220K OHM 1/5W CARBON LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC16SH-07IP04-224A2020-TA
ActiveAmphenol Piher Sensing Systems
POT 220K OHM 1/5W CARBON LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC16SH-07IP04-224A2020-TA |
|---|---|
| Actuator Diameter [diameter] | 4 mm |
| Actuator Diameter [diameter] | 0.157 in |
| Actuator Type | Knurled |
| Adjustment Type | Side Adjustment |
| Built in Switch | False |
| Bushing Thread | 0.75 |
| Bushing Thread | M7 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.2 W |
| Power (Watts) | 1/5 |
| Resistance (Ohms) | 220k |
| Resistive Material | Carbon |
| Rotation | 300 ░ |
| Size - Body [x] | 0.63 in |
| Size - Body [x] | 16 mm |
| Size - Body [y] | 0.63 in |
| Size - Body [y] | 16 mm |
| Taper | Linear |
| Termination Style | PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.76 | |
| 10 | $ 3.02 | |||
| 25 | $ 2.77 | |||
| 50 | $ 2.59 | |||
| 100 | $ 2.42 | |||
| 250 | $ 2.21 | |||
| 500 | $ 2.07 | |||
| 1000 | $ 1.93 | |||
| 5000 | $ 1.65 | |||
Description
General part information
PC16SH-07IP04-224A2020-TA
220k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Carbon 0.2W, 1/5W PC Pins
