100023868
ActiveTelegartner Inc
ADAPT STR TNCF - SMAF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023868 |
|---|---|
| Adapter Series | SMA to TNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Beryllium Copper |
| Center Contact Material | Brass, Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | TNC Jack, Female Socket |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 73.84 | |
| 5 | $ 70.15 | |||
| 10 | $ 66.45 | |||
| 25 | $ 63.50 | |||
| 50 | $ 58.33 | |||
| 100 | $ 56.86 | |||
| 250 | $ 53.53 | |||
Description
General part information
100023868

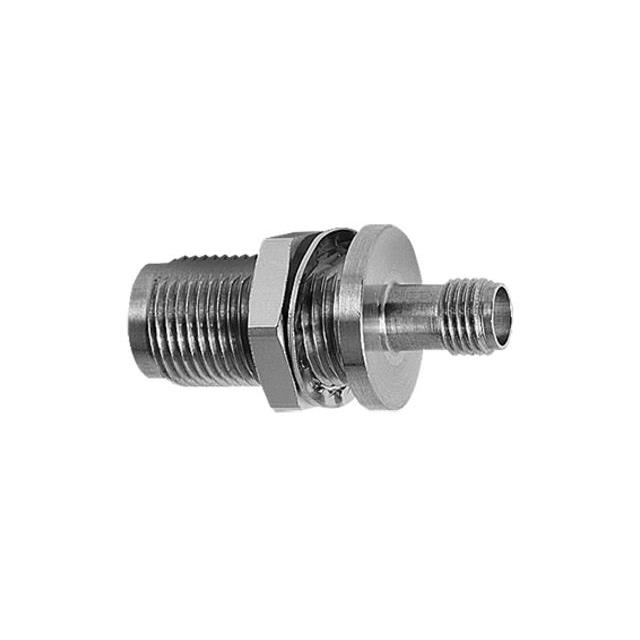

Adapter Coaxial Connector TNC Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
