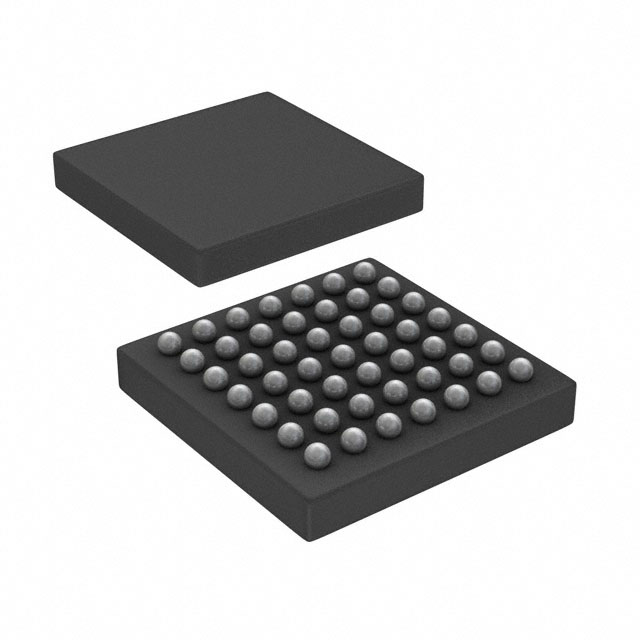

STM32F401CBY6TT
ActiveSTMicroelectronics
ARM-BASED 32-BIT MCU+FPU, 84MHZ, 128KB FLASH, 49-PIN WLCSP, -40 TO 85°C T/R
Deep-Dive with AI
Search across all available documentation for this part.
STM32F401CBY6TT
ActiveSTMicroelectronics
ARM-BASED 32-BIT MCU+FPU, 84MHZ, 128KB FLASH, 49-PIN WLCSP, -40 TO 85°C T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STM32F401CBY6TT |
|---|---|
| Connectivity | IrDA, SPI, I2C, UART/USART, LINbus, USB OTG, SDIO |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Mounting Type | Surface Mount |
| Number of I/O | 36 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | WLCSP, 49-UFBGA |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT, PWM, I2S |
| Program Memory Size | 128 KB |
| Program Memory Type | FLASH |
| RAM Size | 64 K |
| Speed | 84 MHz |
| Supplier Device Package | 49-WLCSP |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.49 | |
| 10 | $ 4.39 | |||
| 25 | $ 3.85 | |||
| 80 | $ 3.33 | |||
| 230 | $ 2.97 | |||
| 440 | $ 2.80 | |||
| 945 | $ 2.63 | |||
| 3000 | $ 2.44 | |||
Description
General part information
STM32F401CBY6TT
ARM® Cortex®-M4 STM32F4 Microcontroller IC 32-Bit Single-Core 84MHz 128KB (128K x 8) FLASH 49-WLCSP
