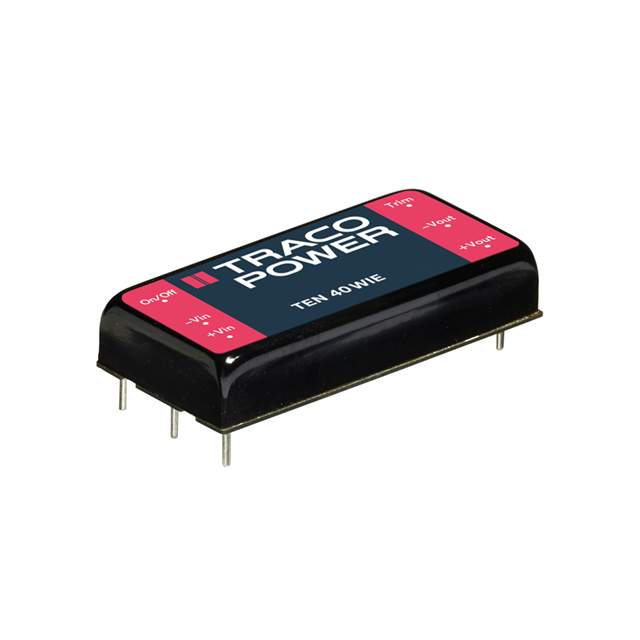

TEN 40-2412WIE
ActiveTraco Power
DC DC CONVERTER 12V 40W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TEN 40-2412WIE
ActiveTraco Power
DC DC CONVERTER 12V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TEN 40-2412WIE |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus |
| Current - Output (Max) [Max] | 3.333 A |
| Efficiency | 92 % |
| Features | Remote On/Off, Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 70.40 | |
| 10 | $ 64.45 | |||
| 25 | $ 62.32 | |||
| 50 | $ 60.76 | |||
| 100 | $ 59.24 | |||
| 250 | $ 52.27 | |||
Description
General part information
TEN 40-2412WIE
Isolated Module DC DC Converter 1 Output 12V 3.333A 9V - 36V Input
