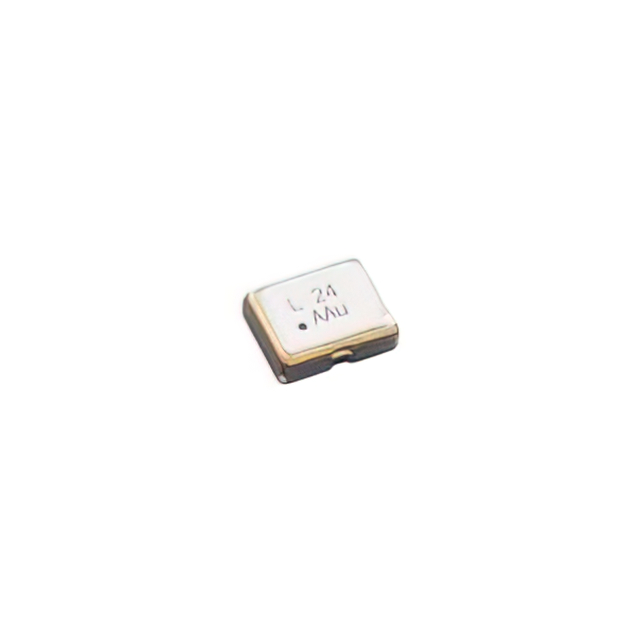

S23305T-25.000-X-R
ActiveAker Technology Corp
XTAL OSC XO 25.0000MHZ HCMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S23305T-25.000-X-R
ActiveAker Technology Corp
XTAL OSC XO 25.0000MHZ HCMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S23305T-25.000-X-R |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 12 mA |
| Frequency | 25 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.037 " |
| Height - Seated (Max) [Max] [z] | 0.95 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.16 | |
| 10 | $ 1.11 | |||
| 50 | $ 1.08 | |||
| 100 | $ 0.93 | |||
| 500 | $ 0.90 | |||
| Digi-Reel® | 1 | $ 1.16 | ||
| 10 | $ 1.11 | |||
| 50 | $ 1.08 | |||
| 100 | $ 0.93 | |||
| 500 | $ 0.90 | |||
| Tape & Reel (TR) | 1000 | $ 0.76 | ||
| 3000 | $ 0.72 | |||
| 5000 | $ 0.70 | |||
| 10000 | $ 0.67 | |||
Description
General part information
S23305T-25.000-X-R
25 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
