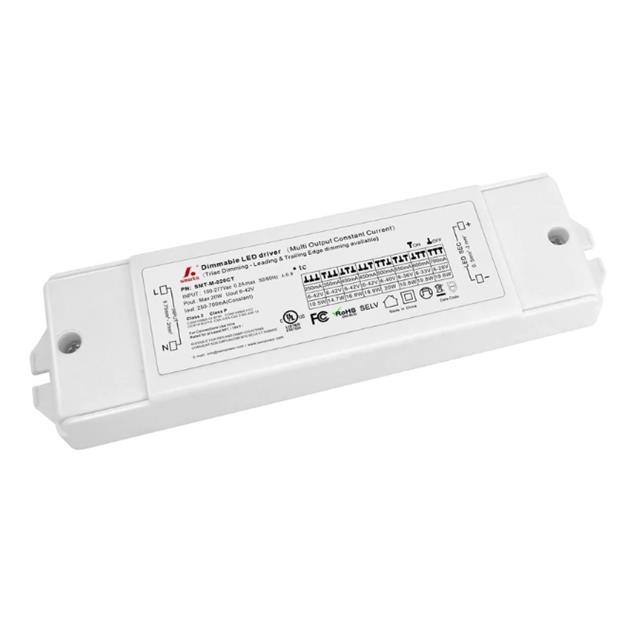

SMT-M-020CT
ActiveSmarts Electronic & Technology
CC AC/DC 3-42V PGM O/P 250-700MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMT-M-020CT
ActiveSmarts Electronic & Technology
CC AC/DC 3-42V PGM O/P 250-700MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMT-M-020CT |
|---|---|
| Approval Agency | cULus, FCC |
| Current - Output (Max) [Max] | 700 mA |
| Dimming | TRIAC |
| Efficiency | 78 % |
| Features | OCP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 20 W |
| Ratings | IP20 |
| Size / Dimension [x] | 5.72 in |
| Size / Dimension [x] | 145.4 mm |
| Size / Dimension [y] | 1.69 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 0.79 in |
| Size / Dimension [z] | 20 mm |
| Standard Number | UL 8750 |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 3750 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 28.78 | |
| 5 | $ 27.27 | |||
| 10 | $ 25.75 | |||
| 25 | $ 24.62 | |||
| 50 | $ 23.48 | |||
| 100 | $ 22.73 | |||
| 250 | $ 20.83 | |||
Description
General part information
SMT-M-020CT
700mA 3 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
