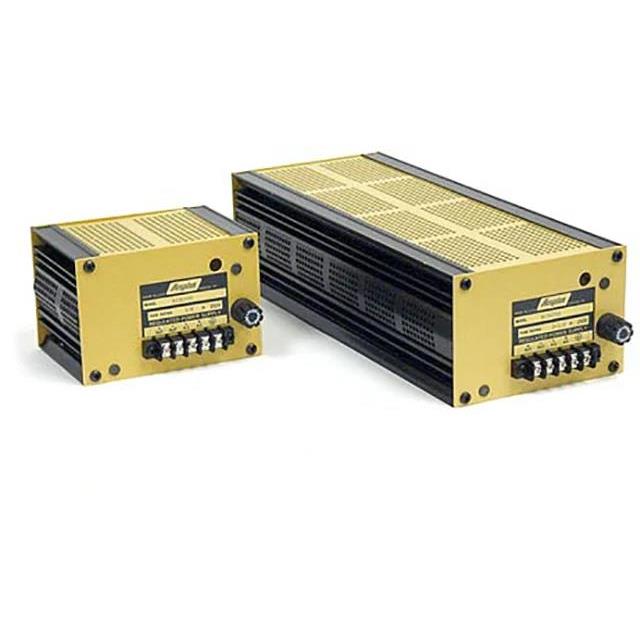

VB24G350M
ActiveAcopian Power Supplies
AC/DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VB24G350M
ActiveAcopian Power Supplies
AC/DC CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VB24G350M |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output 1 | 3.5 A |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 235 mm |
| Size / Dimension [x] | 9.25 in |
| Size / Dimension [y] | 5.12 " |
| Size / Dimension [y] | 130 mm |
| Size / Dimension [z] | 3.44 " |
| Size / Dimension [z] | 87.4 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 125 VAC |
| Voltage - Input [Min] | 105 VAC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 465.50 | |
| 5 | $ 460.50 | |||
| 10 | $ 455.50 | |||
| 25 | $ 450.50 | |||
Description
General part information
VB24G350M
Enclosed AC DC Converters 1 Output 24V 105 ~ 125 VAC Input
