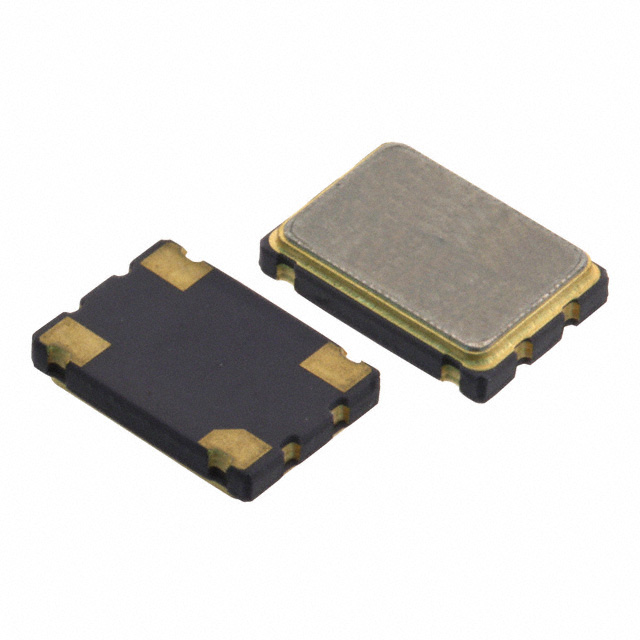

7W-30.000MBD-T
ObsoleteTXC CORPORATION
XTAL OSC XO 30.0000MHZ CMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7W-30.000MBD-T
ObsoleteTXC CORPORATION
XTAL OSC XO 30.0000MHZ CMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7W-30.000MBD-T |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 20 mA |
| Frequency | 30 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.056 in |
| Height - Seated (Max) [Max] [z] | 1.42 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
7W-30.000MBD-T
30 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
