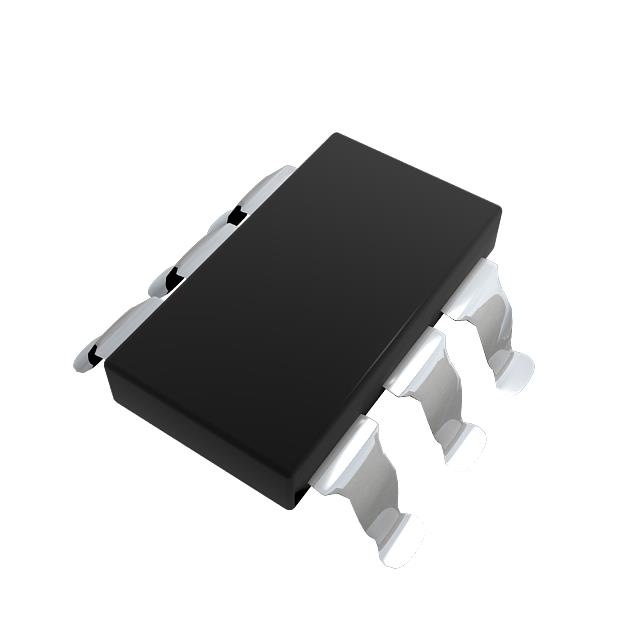

AZ2013-05R
ActiveAmazing
TVS DIODE 3.3VWM SOT563
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZ2013-05R
ActiveAmazing
TVS DIODE 3.3VWM SOT563
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ2013-05R |
|---|---|
| Applications | General |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOT-666, SOT-563 |
| Power Line Protection | False |
| Supplier Device Package | SOT-563 |
| Type | Zener |
| Unidirectional Channels [custom] | 5 |
| Voltage - Breakdown (Min) [Min] | 4.5 V |
| Voltage - Reverse Standoff (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 10 | $ 0.30 | |
Description
General part information
AZ2013-05R
Clamp Ipp Tvs Diode Surface Mount SOT-563
