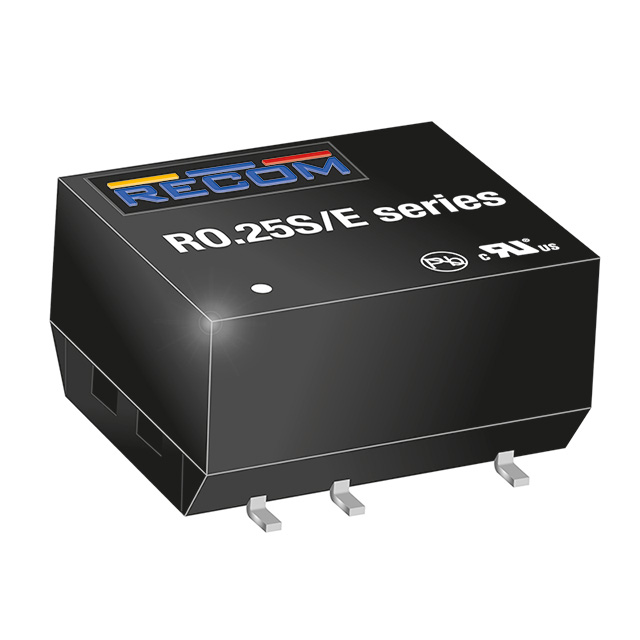

R0.25S8-0505/P-R

Active

RECOM Power

0.25W DC/DC-CONVERTER ECONOLINE SMD 1KV UNREG ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

R0.25S8-0505/P-R

Active

RECOM Power

0.25W DC/DC-CONVERTER ECONOLINE SMD 1KV UNREG ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R0.25S8-0505/P-R

Applications	ITE (Commercial)
Current - Output (Max) [Max]	50 mA
Efficiency [Max]	70 %
Efficiency [Min]	60 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SMD Module
Power (Watts)	250 mW
Size / Dimension [x]	0.49 in
Size / Dimension [x]	12.8 mm
Size / Dimension [y]	10.7 mm
Size / Dimension [y]	0.42 "
Size / Dimension [z]	7 mm
Size / Dimension [z]	0.28 "
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1000 V
Voltage - Output 1	5 V

R0.25S12-3.33.3 Series

Isolated DC/DC Converters - SMD CONV DC/DC 0.25W 12VIN 15VOUT

...

Part	Efficiency [Max]	Efficiency [Min]	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Features	Package / Case	Voltage - Output 1	Applications	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Mounting Type	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Package / Case
RECOM Power R0.25S-2409/H	70 %	60 %	1	Isolated Module	100 °C	-40 °C	3000 V	SCP	8-SMD Module 5 Leads	9 V	ITE (Commercial) Medical	21.6 V	28 mA	26.4 V	Surface Mount	250 mW	7 mm	10.7 mm	0.42 "	0.28 "	0.49 in	12.8 mm
RECOM Power R0.25S-0505/HP	70 %	60 %	1	Isolated Module	100 °C	-40 °C	3000 V	SCP	8-SMD Module 5 Leads	5 V	ITE (Commercial) Medical	4.5 V	50 mA	5.5 V	Surface Mount	250 mW	7 mm	10.7 mm	0.42 "	0.28 "	0.49 in	12.8 mm
RECOM Power R0.25S-0524/P	70 %	60 %	1	Isolated Module	100 °C	-40 °C	1000 V	SCP	8-SMD Module 5 Leads	24 V	ITE (Commercial)	4.5 V	10.4 mA	5.5 V	Surface Mount	250 mW	7 mm	10.7 mm	0.42 "	0.28 "	0.49 in	12.8 mm
RECOM Power R0.25S-053.3/P	70 %	60 %	1	Isolated Module	100 °C	-40 °C	1000 V	SCP	8-SMD Module 5 Leads	3.3 V	ITE (Commercial)	4.5 V	76 mA	5.5 V	Surface Mount	250 mW	7 mm	10.7 mm	0.42 "	0.28 "	0.49 in	12.8 mm
RECOM Power R0.25S8-2412	70 %	60 %	1	Isolated Module	100 °C	-40 °C	1000 V	SCP	8-SMD Module	12 V	ITE (Commercial)	21.6 V	21 mA	26.4 V	Surface Mount	250 mW	7 mm	10.7 mm	0.42 "	0.28 "	0.49 in	12.8 mm
RECOM Power R0.25S12-1224/P	70 %	60 %	1	Isolated Module	100 °C	-40 °C	1000 V	SCP	12-SMD Module	24 V	ITE (Commercial)	10.8 V	10.4 mA	13.2 V	Surface Mount	250 mW	7 mm	10.7 mm	0.42 "	0.28 "	0.49 in	12.8 mm	10 Leads
RECOM Power R0.25S12-2405/P	70 %	60 %	1	Isolated Module	100 °C	-40 °C	1000 V	SCP	12-SMD Module	5 V	ITE (Commercial)	21.6 V	50 mA	26.4 V	Surface Mount	250 mW	7 mm	10.7 mm	0.42 "	0.28 "	0.49 in	12.8 mm	10 Leads
RECOM Power R0.25S-1212/P	70 %	60 %	1	Isolated Module	100 °C	-40 °C	1000 V	SCP	8-SMD Module 5 Leads	12 V	ITE (Commercial)	10.8 V	21 mA	13.2 V	Surface Mount	250 mW	7 mm	10.7 mm	0.42 "	0.28 "	0.49 in	12.8 mm
RECOM Power R0.25S12-2415-R	70 %	60 %	1	Isolated Module	100 °C	-40 °C	1000 V	SCP	12-SMD Module	15 V	ITE (Commercial)	21.6 V	17 mA	26.4 V	Surface Mount	250 mW	7 mm	10.7 mm	0.42 "	0.28 "	0.49 in	12.8 mm	10 Leads
RECOM Power R0.25S8-1515-R	70 %	60 %	1	Isolated Module	100 °C	-40 °C	1000 V	SCP	8-SMD Module	15 V	ITE (Commercial)	13.5 V	17 mA	16.5 V	Surface Mount	250 mW	7 mm	10.7 mm	0.42 "	0.28 "	0.49 in	12.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 11.93
	Digi-Reel®	1	$ 11.93
	Tape & Reel (TR)	500	$ 9.76
Newark	Each (Supplied on Full Reel)	500	$ 10.17
		1000	$ 9.60
		1500	$ 9.03
Sager	N/A	1	$ 11.94
		5	$ 11.55
		10	$ 11.02
		25	$ 10.70
		50	$ 10.53
		100	$ 10.24
		250	$ 9.56

Description

General part information

R0.25S12-3.33.3 Series

Isolated DC/DC Converters - SMD CONV DC/DC 0.25W 12VIN 15VOUT
