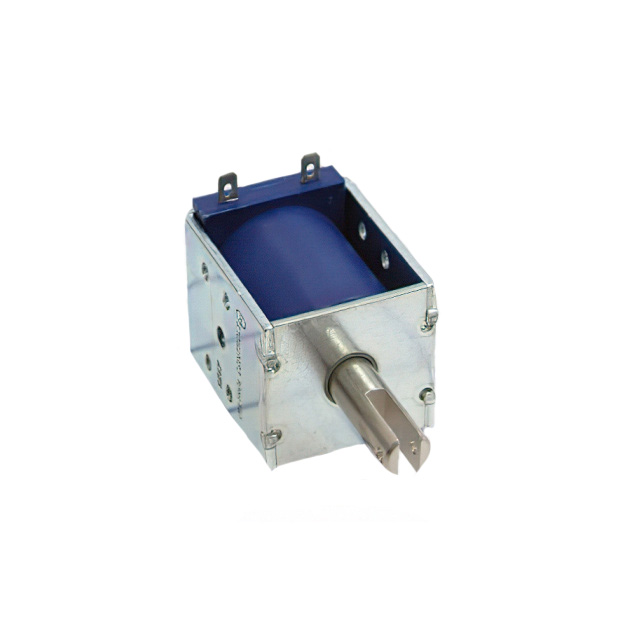

53717-87
ActiveDelta Controls
SOLENOID, 12VDC, INTERMITTENT DU
Deep-Dive with AI
Search across all available documentation for this part.
53717-87
ActiveDelta Controls
SOLENOID, 12VDC, INTERMITTENT DU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 53717-87 |
|---|---|
| DC Resistance (DCR) | 3.01 Ohm |
| Diameter - Shaft [diameter] | 11.18 mm |
| Diameter - Shaft [diameter] | 0.44 in |
| Duty Cycle | Intermittent |
| Mounting Type | Chassis Mount |
| Power (Watts) | 47 W |
| Shaft Detail | Clevis |
| Size / Dimension [x] | 1.996 in |
| Size / Dimension [x] | 50.7 mm |
| Size / Dimension [y] | 36.5 mm |
| Size / Dimension [y] | 1.437 in |
| Size / Dimension [z] | 1.625 " |
| Size / Dimension [z] | 41.28 mm |
| Stroke Length | 0.75 in |
| Stroke Length | 19.05 mm |
| Technology | Electromechanical |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Open Frame (Pull) |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 43.48 | |
| 25 | $ 42.61 | |||
| 50 | $ 41.31 | |||
| 100 | $ 38.70 | |||
Description
General part information
53717-87
Intermittent Duty Solenoid Open Frame (Pull) Type 0.750" (19.05mm) Stroke 12VDC Chassis Mount
Documents
Technical documentation and resources
No documents available
