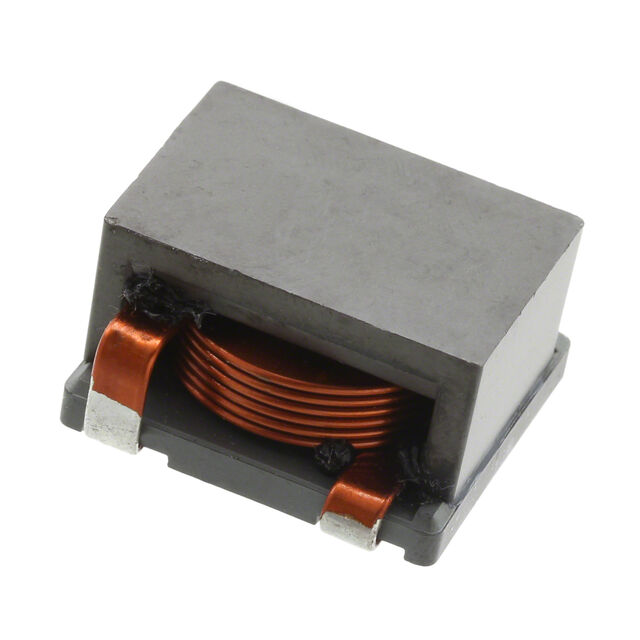

HA65A-251522RLF
UnknownTT Electronics/BI Magnetics
FIXED IND 22UH 2.6 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HA65A-251522RLF
UnknownTT Electronics/BI Magnetics
FIXED IND 22UH 2.6 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HA65A-251522RLF |
|---|---|
| Current - Saturation (Isat) | 22 A |
| DC Resistance (DCR) [Max] | 2.6 mOhm |
| Frequency - Self Resonant | 9 MHz |
| Height - Seated (Max) | 15.5 mm |
| Height - Seated (Max) [Max] | 0.61 " |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension [x] | 26.5 mm |
| Size / Dimension [x] | 1.043 in |
| Size / Dimension [y] | 1.043 " |
| Size / Dimension [y] | 26.5 mm |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.12 | |
| 10 | $ 4.75 | |||
| 25 | $ 4.30 | |||
| 40 | $ 4.08 | |||
Description
General part information
HA65A-251522RLF
22 µH Unshielded Wirewound Inductor 2.6mOhm Max Nonstandard
