KMQ250VS271M22X25T2
ObsoleteChemi-Con
CAP ALUM 270UF 20% 250V SNAP TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KMQ250VS271M22X25T2
ObsoleteChemi-Con
CAP ALUM 270UF 20% 250V SNAP TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KMQ250VS271M22X25T2 |
|---|---|
| Applications | General Purpose |
| Capacitance | 270 µF |
| ESR (Equivalent Series Resistance) | 921 mOhm |
| Height - Seated (Max) [Max] [z] | 1.063 in |
| Height - Seated (Max) [Max] [z] | 27 mm |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |

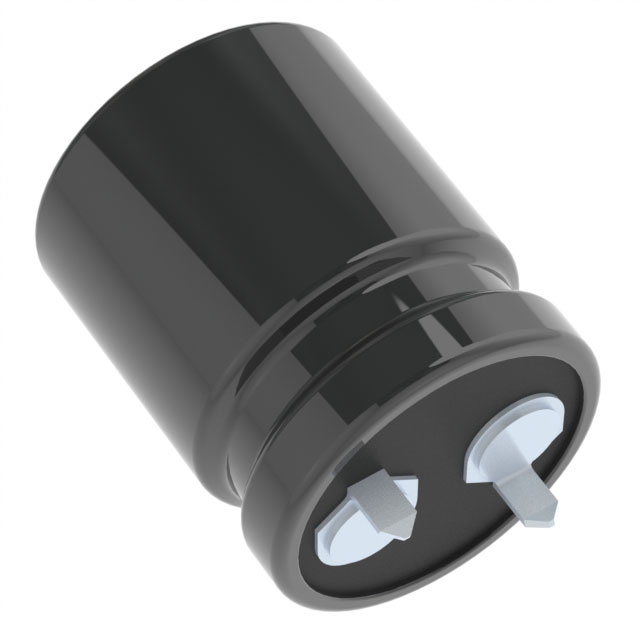

| Package / Case | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current @ High Frequency | 1.65 A |
| Ripple Current @ Low Frequency | 1.1 A |
| Size / Dimension [diameter] | 22 mm |
| Size / Dimension [diameter] | 0.866 in |
| Tolerance | 20 % |
| Voltage - Rated | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KMQ250VS271M22X25T2
270 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 921mOhm @ 120Hz 2000 Hrs @ 105°C
