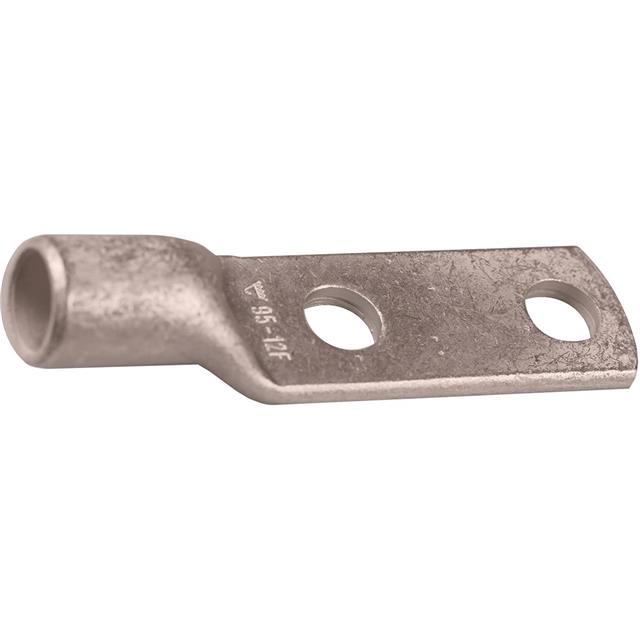

KRF95-12X2-40
ActiveElpress Inc.
BATTERY LUG 2-HOLE 95 MM M12
Deep-Dive with AI
Search across all available documentation for this part.
KRF95-12X2-40
ActiveElpress Inc.
BATTERY LUG 2-HOLE 95 MM M12
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KRF95-12X2-40 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | UL listed |
| Insulation | Non-Insulated |
| Length - Overall [x] | 107 mm |
| Length - Overall [x] | 4.213 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M12 Stud |
| Tab Thickness | 4.9 mm |
| Tab Thickness | 0.193 in |
| Terminal Type | Ring, Tubular |
| Termination | Crimp |
| Width - Outer Edges [y] | 1.141 in |
| Width - Outer Edges [y] | 29 mm |
| Wire Gauge | 3 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 14.11 | |
Description
General part information
KRF95-12X2-40
Terminal Connector Rectangular Ring, Tubular 3 AWG M12 Stud
Documents
Technical documentation and resources
No documents available
