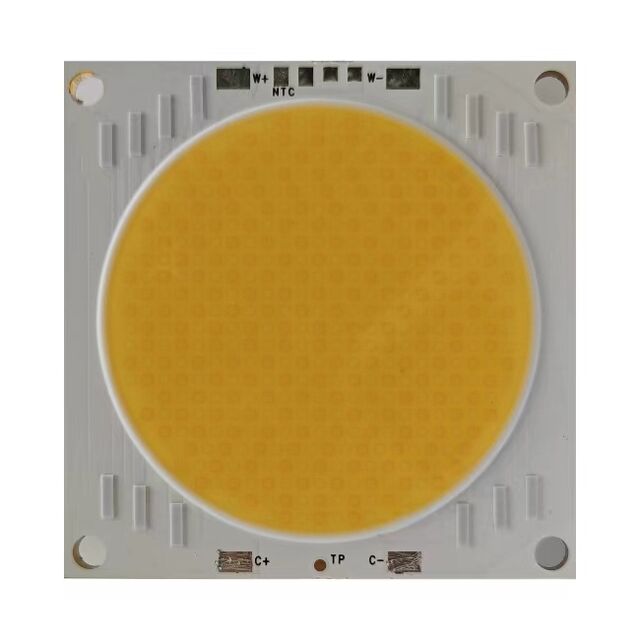

lWLS-5454-600W
ActiveWeilinsen
HIGH POWER TWO COLOR COB LED 54*
Deep-Dive with AI
Search across all available documentation for this part.
lWLS-5454-600W
ActiveWeilinsen
HIGH POWER TWO COLOR COB LED 54*
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | lWLS-5454-600W |
|---|---|
| CCT (K) [Max] | 5700 K |
| CCT (K) [Min] | 3000 K |
| Color | White, Warm |
| Configuration | Round |
| CRI (Color Rendering Index) | 95 |
| Current - Max [Max] | 6 A |
| Current - Test | 5.8 A |
| Features | Lens - Flat |
| Height [z] | 1.5 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [x] | 48 mm |
| Light Emitting Surface (LES) [y] | 48 mm |
| Lumens/Watt @ Current - Test [Max] | 24800 lm |
| Lumens/Watt @ Current - Test [Min] | 21400 lm |
| Luminous Flux @ Current/Temperature [Max] | 27600 lm |
| Luminous Flux @ Current/Temperature [Min] | 24600 lm |
| Size / Dimension [x] | 54 mm |
| Size / Dimension [y] | 54 mm |
| Temperature - Test | 40 °C |
| Type | Chip On Board (COB) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 47 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 27.14 | |
| 300 | $ 26.42 | |||
| 500 | $ 25.71 | |||
| 1000 | $ 25.00 | |||
Description
General part information
lWLS-5454-600W
LED Lighting COBs Engines Modules Chip On Board (COB) - White, Warm Round
Documents
Technical documentation and resources
No documents available
